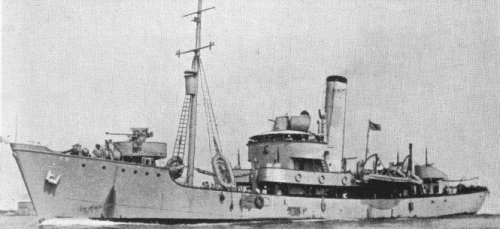

Henrique Dias 1946
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Pampano | Henrique Lage, Ilha do Viana, Brazil | 10.10.1942 | 11.1943 // --- | purchased by Brazilian navy 8.1942 (Mathias de Albuqerque) | |||
| Papaterra | Henrique Lage, Ilha do Viana, Brazil | 2.1942 | 6/1943 // --- | purchased by Brazilian navy 8.1942 (Felipe Camarao) | |||
| Parati | Henrique Lage, Ilha do Viana, Brazil | 10.10.1942 | 11.1943 // --- | purchased by Brazilian navy 8.1942 (Fernandes Vieira) | |||
| Pargo | Henrique Lage, Ilha do Viana, Brazil | 28.8.1942 | 9.1943 // --- | purchased by Brazilian navy 8.1942 (Henrique Dias) | |||
| Paru | Henrique Lage, Ilha do Viana, Brazil | 2.1944 | 10/1944 // --- | purchased by Brazilian navy 8.1942 (Barreto de Menezes) | |||
| Pelegrime | Henrique Lage, Ilha do Viana, Brazil | 12.1942 | 1.1944 // --- | purchased by Brazilian navy 8.1942 (Vidal de Negreiros) |
|
Displacement standard, t |
813 |
|
Displacement full, t |
920 |
|
Length, m |
48.8 pp 53.8 oa |
|
Breadth, m |
8.53 |
|
Draught, m |
4.88 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 boiler |
|
Power, h. p. |
1000 |
|
Max speed, kts |
12.5 |
|
Fuel, t |
coal |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 4 DCT, mechanical minesweeping gear |
| Sensors | type 122 sonar |
|
Complement |
70 |
Project history: Dual-purpose, minesweeping and ASW trawlers. All units of this class were purchased by Brazilian navy when built.
Modernizations: None.
Naval service: No significant events.
Henrique Dias 1946
