VTE-engined minesweeper Rhyl 1943
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ardrossan | J131 | Blyth | 9/1940 | 22.7.1941 | 5/1942 | sold 1.1948 | |
| Baluchistan (ex-Greenock) (RIM) | J182 | Blyth | 7.1941 | 11.5.1942 | 10.1942 | to Pakistan 1948 (بلوچستان [Baluchistan]) | |
| Beaumaris | J07 | 433 | Ailsa, Troon | 12/1939 | 31.10.1940 | 8/1941 | sold 1.1948 |
| Bootle | J143 | 438 | Ailsa, Troon | 8/1940 | 23.10.1941 | 4/1942 | sold 1.1948 |
| Boston | J14 | 434 | Ailsa, Troon | 11/1939 | 30.12.1940 | 1/1942 | sold 1.1948 |
| Brixham | J105 | Blyth | 11/1940 | 21.10.1941 | 8/1942 | sold 7.1948 | |
| Carnatic (ex-Newhaven) (RIM) | J199 | 451 | Hamilton, Glasgow | 3.1941 | 29.7.1942 | 10.1942 | sold 1949 |
| Clacton | J151 | 439 | Ailsa, Troon | 11/1940 | 19.12.1941 | 6/1942 | sunk 31.12.1943 |
| Cromarty | J09 | Blyth | 6/1940 | 24.2.1941 | 12/1941 | sunk 23.10.1943 | |
| Dornoch | J173 | 440 | Ailsa, Troon | 1/1941 | 4.2.1942 | 7/1942 | sold 1.1948 |
| Dunbar | J53 | Blyth | 6/1940 | 5.6.1941 | 3.1942 | sold 1.1948 | |
| Hythe (ex-Banff) | J194 | 437 | Ailsa, Troon | 7/1940 | 4.9.1941 | 3.1942 | sunk 11.10.1943 |
| Ilfracombe | J95 | 444 | Hamilton, Glasgow | 10/1939 | 29.1.1941 | 8.1941 | sold 1.1948 |
| Kathiawar (ex-Hartlepool) (RIM) | J155 | Blyth | 10.1941 | 14.7.1942 | 12.1942 | to Pakistan 1948 (چتتگونگ [Chittagong]) | |
| Khyber (ex-Harwich) (RIM) | J190 | 449 | Hamilton, Glasgow | 12.1940 | 17.2.1942 | 8.1942 | sold 1949 |
| Kumaon (ex-Middlesborough) (RIM) | J164 | 450 | Hamilton, Glasgow | 12.1940 | 2.5.1942 | 11.1942 | sold 1949 |
| Llandudno | J67 | 445 | Hamilton, Glasgow | 10.1939 | 8.11.1941 | 3.1942 | sold 1947 |
| Lyme Regis (ex-Sunderland) | J193 | 582 | A. Stephens, Linthouse | 9.1941 | 19.3.1942 | 6/1942 | BU 8.1948 |
| Polruan | J97 | 431 | Ailsa, Troon | 11/1939 | 18.7.1940 | 5.1941 | BU 6.1950 |
| Poole | J147 | 581 | A. Stephens, Linthouse | 7/1940 | 25.6.1941 | 11.1941 | sold 1.1948 |
| Rohilkhand (ex-Padstow) (RIM) | J180 | 452 | Hamilton, Glasgow | 8.1941 | 29.10.1942 | 2.1943 | sold 1961 |
| Rothesay | J19 | 442 | Hamilton, Glasgow | 9/1939 | 18.3.1941 | 7.1941 | sold 4.1950 |
| Rye | J76 | 432 | Ailsa, Troon | 11/1939 | 19.8.1940 | 11.1941 | sold 8.1948 |
| Tenby | J34 | 443 | Hamilton, Glasgow | 9/1939 | 10.9.1941 | 12.1941 | sold 1.1948 |
| Whitehaven | J121 | Philip, Dartmouth | 7/1940 | 29.5.1941 | 11.1941 | sold 8.1948 | |
| Worthing | J72 | Philip, Dartmouth | 11.1940 | 22.8.1941 | 3/1942 | sold 7.1948 |
|
Displacement standard, t |
605 |
|
Displacement full, t |
780 |
|
Length, m |
53.0 |
|
Breadth, m |
8.69 |
|
Draught, m |
2.95 deep load |
|
No of shafts |
2 |
|
Machinery |
2 sets geared steam turbines, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
2000 |
|
Max speed, kts |
16.5 |
|
Fuel, t |
oil 150 |
|
Endurance, nm(kts) |
4000(10) |
|
Armament |
1 x 1 - 76/45 20cwt QF Mk I/II/III/IV, 1 x 1 - 40/39 2pdr QF Mk VIII or 1 x 4 - 12.7/62, 4 DCT, 2 DCR (40 in ASW role), mechanical minesweeping gear Cromarty, RIM ships: 1 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 1 x 1 - 40/39 2pdr QF Mk VIII or 1 x 4 - 12.7/62, 4 DCT, 2 DCR (40 in ASW role), mechanical minesweeping gear |
| Sensors | type 286PU radar (some), type 128 sonar |
|
Complement |
60 - 87 |
Project history: Bangor class minesweepers were designed as alternative to Halcyon class ships which, according to Admiralty, because of relatively large dimensions did not suited for a mass building. Deciding about designing the smaller minesweeper have accepted in 1938. Designing was conducted quickly and already in the beginning of next year design in two variants has been approved: with diesels and with turbines. In the spring of 1939 order for first 10 ships was placed. With the beginning of hostilities mass building of Bangor class started. Many small private yards have been attracted in fulfilment of this program. Foreseeing difficulties which could be at the last in the absence of experience of building of ships with turbine or diesels, Admiralty have developed the design of Bangor with VTEs, and again in two variants: with compact high-speed (a rotational speed of shafts was almost same, as well as at diesel-engined ship) and with more bulky, but habitual, slow-speed VTE. Last variant also became the most mass: British, Canadian and Indian yards have built 67 units, 4 more sister ships, laid down in Hong Kong, were captured by Japanese and has completed for their Navy.
Except the ships with slow-speed VTE, 26 turbine-engined, 14 diesel-engined and only 2 minesweepers with high-speed VTE were built.
Conceived as the pure minesweepers carrying under the design only 4 DCs, Bangor at a completion phase have received the strengthened anti-submarine armament. Because of the overload which have arisen thus it was necessary to refuse from provided by the design 102mm gun, more light 76mm AA gun was installed instead. Nevertheless, stability of Bangors, especially diesel variant, was considered in Britain as insufficient.
From 50 VTE ships, built in Canada, 12 were ordered by RN, but half from them have transferred to Canadian fleet.
Modernizations: 1943 - 1944, all ships had 1 x 1 - 40/39 2pdr QF Mk VIII and / or (1 - 3) x 1 - 20/70 Oerlikon Mk II/IV as close range AA.
Naval service: Were lost on mines: Cromarty 23.10.1943 off Sardinia; Clacton 31.12.1943 off Corsica. Hythe was sunk 11.10.1943 by German submarine U371 at coast of Algeria.
Many thanks to Wolfgang Stöhr for additional information on this page.

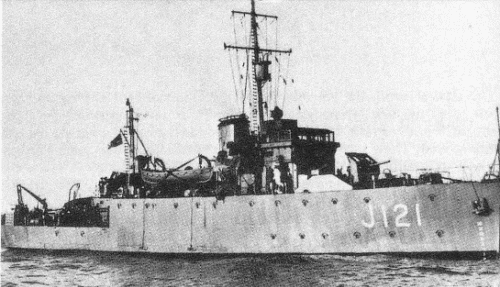

Whitehaven
