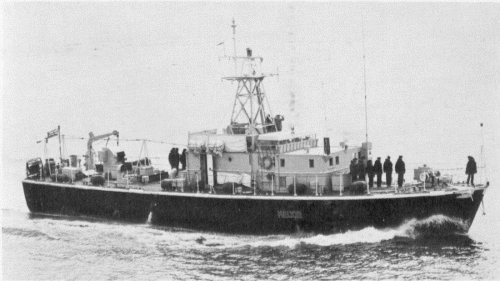

Dingley 1965
Aveley 1963
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|
Dingley (ex-Black Bantam) |
M2001 |
White, Cowes | 3.9.1952 | 1953 | sold 7.1967 | ||
| Aveley (ex-Grey Bantam) | M2002 | White, Cowes | 16.2.1953 | 1953 | Sea Cadets TS 5.1983 | ||
| Brearley | M2003 | White, Cowes | 16.6.1953 | 1953 | sold 5.1971 | ||
| Brenchley | M2004 | Saunders-Roe, Anglesey | 19.7.1954 | 1955 | sold 1.1966 | ||
| Brinkley | M2005 | Saunders-Roe, Anglesey | 14.9.1954 | 1955 | sold 1.1966 | ||
| Broadley | M2006 | Blackmore, Bideford | 24.11.1953 | 1954 | fire 29.9.1956 | ||
| Broomley, 1.1959- Watchful | M2007 | Harris, Appledore | 14.4.1953 | 1953 | RNR 1.1959, sold 1.1968 | ||
| Burley, 12.1959- Squirrel | M2008 | Dorset Yacht, Poole | 6.1.1954 | 1954 | RNR 12.1959, sold 1.1968 | ||
| Chailey | M2009 | Saunders-Roe, Anglesey | 11.11.1954 | 1955 | sold 6.1969 | ||
| Cradley, 1963- Isis | M2010 | Saunders-Roe, Anglesey | 24.2.1955 | 1955 | RNR 1963, sold 4.1982 | ||
| Edgeley (ex-Wrentham) | M2011 | Dorset Yacht, Poole | 1955 | --- | cancelled 1955 |
|
Displacement standard, t |
123 |
|
Displacement full, t |
164 |
|
Length, m |
30.5 pp 32.5 oa |
|
Breadth, m |
6.60 |
|
Draught, m |
1.67 |
|
No of shafts |
2 |
|
Machinery |
2 Davey Paxman diesels |
|
Power, h. p. |
700 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil 15 |
| Endurance, nm(kts) | 2350(9) |
|
Armament |
1 x 1 - 40/60 Mk 7 or 1 x 1 - 20/70 Mk 7, LL mechanical/magnetic/acoustic minesweeping gear |
|
Electronic equipment |
type 978 radar |
|
Complement |
15 |
Project history: Very similar to the 'Ham' class, composite-built with aluminium alloy framing and wooden planked hulls. The programme was cut short with the cancellation of Edgeley. They survived longer than the 'Ham' type because they were re-equipped for minehunting, minus sweep gear; all were either reduced to training or had been sold by the mid 1970s.
Modernizations: 1960s, all survived: - minesweeping gear; + divers
Naval service: Broadley burnt 29.9.1956 by accident in Haslar Creek.
Aveley 1979
