Brecon 1990
Ledbury 2010
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|
Brecon |
M29 |
4240 | Vosper Thornycroft, Woolston | 15.9.1975 | 21.6.1978 | 21.3.1980 | retired 9.2005 |
| Ledbury | M30 | 4241 | Vosper Thornycroft, Woolston | 5.10.1977 | 5.12.1979 | 11.6.1981 | in service (2019) |
| Cattistock | M31 | 4242 | Vosper Thornycroft, Woolston | 20.6.1979 | 22.1.1981 | 16.6.1982 | in service (2019) |
| Cottesmore | M32 | 1025 | Yarrow SB, Scotstoun | 27.9.1979 | 9.2.1982 | 24.6.1983 | retired 9.2005, to Lithuania (Skalvis) |
| Brocklesby | M33 | 4243 | Vosper Thornycroft, Woolston | 8.5.1980 | 12.1.1982 | 3.2.1983 | in service (2019) |
| Middleton | M34 | 1026 | Yarrow SB, Scotstoun | 1.7.1980 | 27.4.1983 | 15.8.1984 | in service (2019) |
| Dulverton | M35 | 4244 | Vosper Thornycroft, Woolston | 1.6.1981 | 3.11.1982 | 4.11.1983 | retired 9.2005, to Lithuania (Kuršis) |
| Bicester | M36 | 4254 | Vosper Thornycroft, Woolston | 2.1.1985 | 4.6.1985 | 14.2.1986 | to Greece 6.2000 (Ευρώπη [Evropi]) |
| Chiddingfold | M37 | 4245 | Vosper Thornycroft, Woolston | 6.10.1983 | 26.10.1984 | in service (2019) | |
| Atherstone | M38 | 4255 | Vosper Thornycroft, Woolston | 9.1.1984 | 1.3.1986 | 30.1.1987 | stricken 12.2017 |
| Hurworth | M39 | 4246 | Vosper Thornycroft, Woolston | 1.1983 | 25.9.1984 | 19.7.1985 | in service (2019) |
| Berkeley | M40 | 4256 | Vosper Thornycroft, Woolston | 9.9.1985 | 3.12.1986 | 14.1.1988 | to Greece 2.2001 (Καλλιστώ [Kallisto]) |
| Quorn | M41 | 4257 | Vosper Thornycroft, Woolston | 2.6.1986 | 23.1.1988 | 21.4.1989 | stricken 12.2017 |
|
Displacement standard, t |
625 |
|
Displacement full, t |
725 |
|
Length, m |
56.6 pp 60.0 oa |
|
Breadth, m |
9.85 |
|
Draught, m |
2.20 hull 3.40 max |
|
No of shafts |
2 |
|
Machinery |
2 Ruston-Paxman Deltic 9-59K diesels |
|
Power, h. p. |
1900 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1500(12) |
|
Armament |
1 x 1 - 40/60 Mk 9, 2 x 1 - 7.6/90, equipment for 6 - 7 divers, 2x PAP 104 Mk 3 USV, TA.6 or MSSA Mk 1 acoustic, M.Mk 11 or MS14 magnetic, M.Mk 8 Oropesa mechanical minesweeping gear, decompression chamber; provision for 2 x 1 - 20/90 GAM-B01 |
|
Electronic equipment |
type 1006(4) or type 1007 radar, type 193M Mod.1 sonar; provision for UAR Matilda ECM suite, 2x DLJ(2) floating decoy launchers, 2x DLK decoy launchers, DBA(4) CAAIS CCS |
|
Complement |
45 |
Project history: Concurrent with the building of Wilton, work began on a new generation of MCMVs or mine countermeasures vessels, a new term signifying that the vessels were capable of both sweeping and hunting. They were the largest GRP ships in the world, with Plessey Type 193M sonar, elaborate position-fixing gear, hydraulic drive and a bow-thruster to permit manoeuvring at low speed. Every effort was made to eliminate the magnetic 'signature' and to cut out radiated noise (including a near non-magnetic version of the Deltic diesel) but at the same time providing a ship capable of deep-sea passages. On a cost per ton basis, they were some of the most expensive warships ever built, £24m for Brecon and £15m for the rest.
Modernizations: 1991, Middleton, Chiddingfold, Hurworth, Berkeley, Quorn: + 2 x 1 - 20/90 GAM-B01
1992, Middleton, Chiddingfold, Hurworth, Berkeley, Quorn: - 2 x 1 - 20/90
early 1990s, all: - 1 x 1 - 40/60; + 1 x 1 - 30/75 DES-30B
1997, Cottesmore; 1998-2000, Brecon, Dulverton, for patrol duties: - all minesweeping gear and USVs; + 2 articulating cranes, 3 RIBs
2003, Ledbury, Brocklesby (temporarily only for deployment): + SWIMS minesweeping system
2003, Hurworth; 2004, Cattistock, Brocklesby, Chiddingfold; 2005, Quorn; 2006, Ledbury, Middleton, Atherstone: - 2x PAP-104 Mk 3 USV, type 193M Mod. 1 sonar, CAAIS CCS; + 2 Seafox USV, type 2193 sonar (with type 2059 submersible tracking set), Mil Cross sonar, NAUTIS III mine warfare CCS
2009, Ledbury; 2009-2016, others: + control equipment for REMUS 600 or 2 FAST minesweeping drones
2012, Chiddingfold; 2014, Middleton; 2015, Ledbury; 2012-2016, others: re-engined with 2 Caterpillar C-32 ACERT diesels (2000hp)
Naval service: No significant events.

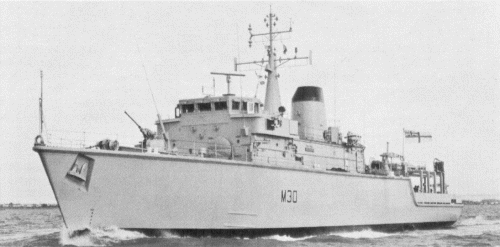

Ledbury 1981

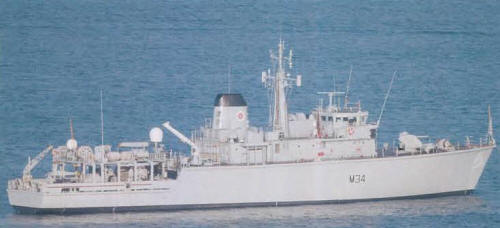

Middleton 2008
Many thanks to Wolfgang Stöhr for additional information on this page.
