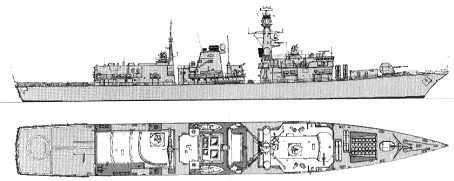

Lancaster 2010

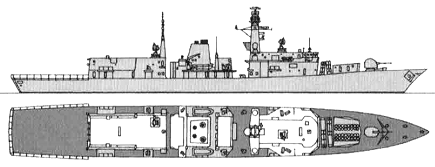

Argyll 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Norfolk | F230 | 1033 | Marconi Marine (YSL), Scotstoun | 14.12.1985 | 10.7.1987 | 1.6.1990 | to Chile 11.2006 (Almirante Cochrane) |
| Marlborough | F233 | Swan Hunter, Wallsend | 22.10.1987 | 21.1.1989 | 14.6.1991 | to Chile 5.2008 (Almirante Condell) | |
| Argyll | F231 | 1035 | Marconi Marine (YSL), Scotstoun | 20.3.1987 | 8.4.1989 | 31.5.1991 | in service (2019) |
| Lancaster | F229 | 1036 | Marconi Marine (YSL), Scotstoun | 18.12.1987 | 24.5.1990 | 1.5.1992 | in service (2019) |
| Iron Duke | F234 | 1040 | Marconi Marine (YSL), Scotstoun | 12.12.1988 | 2.3.1991 | 20.5.1993 | in service (2019) |
| Monmouth | F235 | 1041 | Marconi Marine (YSL), Scotstoun | 1.6.1989 | 23.11.1991 | 24.9.1993 | in service (2019) |
| Montrose | F236 | 1042 | Marconi Marine (YSL), Scotstoun | 1.11.1989 | 31.7.1992 | 2.6.1994 | in service (2019) |
| Westminster | F237 | Swan Hunter, Wallsend | 18.1.1991 | 4.2.1992 | 13.5.1994 | in service (2019) | |
| Northumberland | F238 | Swan Hunter, Wallsend | 4.4.1991 | 4.4.1992 | 29.11.1994 | in service (2019) | |
| Richmond | F239 | Swan Hunter, Wallsend | 16.2.1992 | 6.4.1993 | 22.6.1995 | in service (2019) | |
| Somerset | F82 | 1043 | Marconi Marine (YSL), Scotstoun | 12.10.1992 | 25.6.1994 | 20.9.1996 | in service (2019) |
| Grafton | F80 | 1044 | Marconi Marine (YSL), Scotstoun | 13.5.1993 | 5.11.1994 | 29.5.1997 | to Chile 3.2007 (Almirante Lynch) |
| Sutherland | F81 | 1045 | Marconi Marine (YSL), Scotstoun | 14.10.1993 | 9.3.1996 | 4.7.1997 | in service (2019) |
| Kent | F78 | 1051 | Marconi Marine (YSL), Scotstoun | 16.4.1997 | 27.5.1998 | 8.6.2000 | in service (2019) |
| Portland | F79 | 1052 | Marconi Marine (YSL), Scotstoun | 14.1.1998 | 15.5.1999 | 3.5.2001 | in service (2019) |
| St. Albans | F83 | 1053 | Marconi Marine (YSL), Scotstoun | 18.4.1999 | 6.5.2000 | 6.6.2002 | in service (2019) |
|
Displacement standard, t |
3600 |
|
Displacement full, t |
4300 |
|
Length, m |
123.0 pp 133.0 oa |
|
Breadth, m |
15.0 wl 16.1 deck |
|
Draught, m |
4.30 hull 5.50 max |
|
No of shafts |
2 |
|
Machinery |
F229-231, 233-236: CODLAG: 2 Rolls-Royce Spey SM1A gas turbines + 4 Paxman Valenta 12RPA 200CZ diesel-generators, 2 electric motors F237-239, 78-83: CODLAG: 2 Rolls-Royce Spey SM1C gas turbines + 4 Paxman Valenta 12RPA 200CZ diesel-generators, 2 electric motors |
|
Power, h. p. |
F229-231, 233-236: 37540 + 4000 = 41540 F237-239, 78-83: 52300 + 4000 = 56300 |
|
Max speed, kts |
F229-231, 233-236: 28 F237-239, 78-83: 30 |
|
Fuel, t |
gas turbine oil + diesel oil 800 |
|
Endurance, nm(kts) |
7800(17) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84C/GWS.60), 1 x 32 Sea Wolf GWS.26 SAM (VLS, 32 Sea Wolf GWS26), 1 x 1 - 114/55 Mk 8, 2 x 1 - 30/75 DS-30B, 2 x 1 - 20/90 GAM-B01, 4 - 324 DMTS90 TT, 1 helicopter (Lynx) |
|
Electronic equipment |
F229-231, 233-236: type 996(1), 2x type 911, type 1007 radars, type 2050NE, type 2031Z sonars, GSA.8/GPEOD Sea Archer E/O director, UAF(1), 2x type 675 ECM suites, 4x Sea Gnat/Siren UAF-1 decoy RL, 2x DEC laser dazzlers, 4x DLF(2) floating decoy launchers, type 182 torpedo decoy, DNA(1) SSCS CCS F237, 238: type 996(1), 2x type 911, type 1007 radars, type 2050NE, type 2031Z sonars, GSA.8/GPEOD Sea Archer E/O director, UAF(1), 2x type 675 ECM suites, 4x Sea Gnat/Siren UAF-1 decoy RL, 2x DEC laser dazzlers, 4x DLF(2) floating decoy launchers, type 2070 torpedo decoy, DNA(1) SSCS CCS F239, 78-83: type 996(1), 2x type 911, type 1007 radars, type 2050NE sonar, GSA.8/GPEOD Sea Archer E/O director, UAT(1), 2x type 675 ECM suites, 4x Sea Gnat/Siren UAF-1 decoy RL, 2x DEC laser dazzlers, 4x DLF(2) floating decoy launchers, DNA(1) SSCS CCS |
|
Complement |
169 |
Project history: Although the Type 22 was recognised as a highly efficient ASW platform, alarm at its high cost led to a call for a cheaper frigate, relying on the Type 2031Z towed array sonar rather than the big Type 2050 and Lynx helicopters. Out of this has emerged the Type 23, expanded to include a bow-mounted sonar, a large ASW helicopter and more general-purpose qualities. Although Falklands experience resulted in improved fire precautions and damage control, the decision to incorporate a double-headed Sea Wolf SAM system predated that conflict. By the time the design was finalized BAE's vertically launched version was nearly ready for trials, and it was selected in place of the earlier lightweight version of GWS25.
The design is optimized for towed array operations, so silencing of machinery was a top priority. Finally a unique combined diesel electric and gas turbine (CODLAG) was chosen, using Spey gas turbines for main drive, and switching to a diesel-electric drive for slow but silent running when using the towed array. The advantage of CODLAG is the elimination of gearbox noise, and the generators are positioned above the waterline to reduce radiated noise.
The opportunity was taken to incorporate ' stealth' features to enhance survivability in surface warfare. This takes the form of a flared hull and the elimination of right angles and radar-reflecting corners in the superstructure, etc. It is claimed that the Type 23 is 'invisible' to the seekers of the current range of anti-ship missiles, and it also claimed to be the quietest ASW ship in the world.
Modernizations: late 1990s, all: - type 996(1) radar; + type 996(2), type 1008 radars
early 2000s, Lancaster, Iron Duke; late 2000s, Sutherland, Somerset, St. Albans, Westminster, Northumberland, Richmond; early 2010s, Monmouth, Montrose, Kent, Portland: - 1 Lynx helicopter; + 1 Merlin helicopter
2004, Westminster; 2005, Northumberland: - type 2031Z sonar, type 2070 torpedo decoy, 2x type 675 ECM suites, 4x DLB decoy RL; + type 2070 torpedo decoy, 2x type 695 ECM suites, 4x DLH decoy RL
2005, Richmond; 2006, Somerset; 2007, St. Albans; 2008, Sutherland; 2011, Kent; 2012, Portland: - 2x type 675 ECM suites, 4x DLB decoy RL; + type 2087 sonar, type 2170 SSTDS anti-torpedo system, 2x type 695 ECM suites, 4x DLH decoy RL
2006-2008, Norfolk, Lancaster, Iron Duke, Monmouth, Montrose, Westminster, Northumberland, Richmond; 2007-2011, Argyll, Somerset, Sutherland, Kent, Portland, St. Albans: - 1 x 1 - 114/55 Mk 8, 2 x 1 - 30/75 DES-30B; + 1 x 1 - 114/55 Mk 8 Mod. 1, 2 x 1 - 30/75 DS-30M Mk 2, SIGMA IR detector, Shaman/Sextant ISTAR communication interceptor
2006-2011, all survived: - Sea Wolf GWS.26 SAM; + Sea Wolf GWS.26 Mod.1 SAM (VLS, 32 Sea Wolf)
2009-2010, Argyll, Montrose, Westminster; 2011, Lancaster: - Sea Wolf GWS.26 Mod.1 SAM, 4x Sea Gnat/Siren UAF-1 decoy RL, SSCS DNA(1) CCS; + Sea Wolf SWMLU GWS 26 Mod. 1 SAM (32 Sea Wolf), 4x Sea Gnat/Siren UAT-1 decoy RL, CMS-1 DNA(2) CCS
2011, Kent; 2012, Richmond, Portland, St. Albans; 2013, Northumberland: - Sea Wolf GWS.26 Mod.1 SAM, SSCS DNA(1) CCS; + Sea Wolf SWMLU GWS 26 Mod. 1 SAM (32 Sea Wolf), CMS-1 DNA(2) CCS
2013, Iron Duke; 2015, Monomouth: - 4x Sea Gnat/Siren UAF-1 decoy RL; + 4x Sea Gnat/Siren UAT-1 decoy RL
2013, Iron Duke, Somerset; 2014, St. Albans; 2015, Monmouth: - type 996(2), 2x type 911 radars; + Scan Eagle UAVs, type 997 ARTISAN, 2x type 911(1) radars, MIDAS ECM suite
2017-later, Lancaster, Iron Duke, Monmouth, Argyll, Montrose, Westminster, Northumberland: - 1 x 32 Sea Wolf GWS.26 SAM VLS, type 996(2), 2x type 911 radars; + 1 x 32 Cea Ceptor SAM VLS (32 Sea Ceptor), Scan Eagle UAVs, type 997 ARTISAN, 2x type 911(1) radars
Naval service: No significant events.

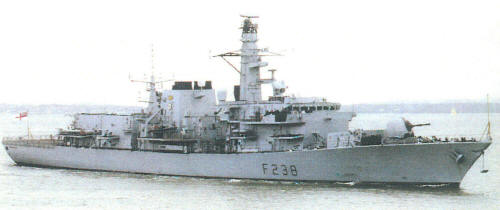

Northumberland 2003

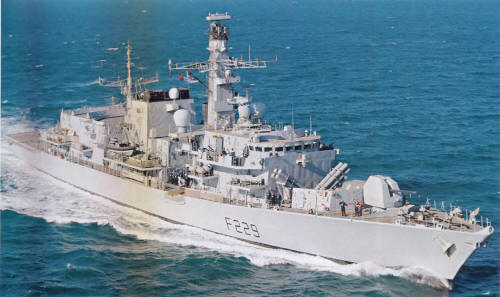

Lancaster 2008
