ROYAL NAVY (UNITED KINGDOM)

ESCORTS

CORNWALL frigates (1988 - 1990)

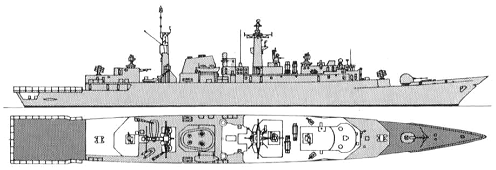

Cornwall 2000

Name No Yard No Builder Laid down Launched Comp Fate
Cornwall F99 1031 Marconi Marine (YSL), Scotstoun 19.9.1983 14.10.1985 23.4.1988 BU 7.2013
Cumberland F85 1032 Marconi Marine (YSL), Scotstoun 12.10.1984 21.6.1986 10.6.1989 BU 7.2013
Campbeltown F86 1378 Cammell Laird, Birkenhead 4.12.1985 7.10.1987 27.5.1989 BU 7.2013
Chatham F87 126 Swan Hunter, Wallsend 12.5.1986 20.1.1988 4.5.1990 BU 7.2013



Displacement standard, t

4280

Displacement full, t

4850

Length, m

135.7 pp 148.1 oa

Breadth, m

14.8

Draught, m

5.35 hull 6.40 screws

No of shafts

2

Machinery

COGAG: 2 Rolls-Royce Spey SM1A gas turbines + Rolls-Royce Tyne RM1C gas turbines

Power, h. p.

37540 + 10680 = 48220

Max speed, kts

30

Fuel, t

gas turbine oil 700

Endurance, nm(kts)

4500(18)

Armament

F99, 85, 86: 2 x 4 Harpoon SSM (8 RGM-84C), 2 x 6 Sea Wolf GWS25 Mod.3 SAM (72 Sea Wolf GWS25), 1 x 1 - 114/55 Mk 8, 1 x 7 - 30/80 Goalkeeper, 2 x 1 - 30/75 DES-30B, 2 x 3 - 324 STWS.2 TT, 2 helicopters (Lynx) or 1 helicopter (Sea King or Merlin)

F87: 2 x 4 Harpoon SSM (8 RGM-84C), 2 x 6 Sea Wolf GWS25 Mod.3 SAM (72 Sea Wolf GWS25), 1 x 1 - 114/55 Mk 8, 1 x 7 - 30/80 Goalkeeper, 2 x 1 - 30/75 DES-30B, 2 x 1 - 20/90 GAM-B01, 2 x 3 - 324 STWS.2 TT, 2 helicopters (Lynx) or 1 helicopter (Sea King or Merlin)

Electronic equipment

F99: type 967M/968, 2x type 911, Goalkeeper, type 1006 radars, type 2016,  2031Z sonars, 2x GSA.8/GPEOD Sea Archer E/O directors, UAA-2, 2x type 675 ECM suites, 4x Sea Gnat decoy RL, 2x DEC laser-dazzlers, type 182 torpedo decoy, CACS-5 CCS

F85-87: type 967M, type 968, 2x type 911, Goalkeeper, type 1006 radars, type 2050,  2031Z sonars, 2x GSA.8/GPEOD Sea Archer E/O directors, UAA-2, 2x type 675 ECM suites, 4x Sea Gnat decoy RL, 2x DEC laser-dazzlers, type 182 torpedo decoy, CACS-5 CCS

Complement

232

Project history: Four more Type 22s were announced at the end of 1982, to replace Falklands losses, but they were redesigned to form Batch 3, with improved command facilities (including flag accommodation), new SSMs, a 114mm gun and a close-in weapon system (CIWS). The hull of the Batch 2 design was retained, but armament was rearranged to provide space for the medium-calibre gun. The eight RGM-84C Harpoon missiles were positioned athwartships behind the wheelhouse, with the 30mm Goalkeeper CIWS one deck up.

    To mark the numerous differences and enhanced capability the 'B' series names gave way to a 'C' series. They have the CACS-5 command system (a version of CACS-1) and the gun was controlled by two GSA.8A Sea Archer electro-optical directors (port and starboard above the wheelhouse).

Modernizations: late 1990s, all: - UAA-2, 2x type 675 ECM suites; + UAT-1 ECM suite, 4x DLF-3 floating decoy launchers

late 1990s, Cornwall: - type 2016 sonar; + type 2050 sonar

early 2000s, all: - type 1006 radar; + type 1007 or type 1008 radar

Naval service: No significant events.

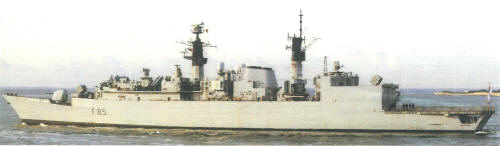

Cumberland 2003
