Antigua 1945
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Anguilla (ex-Hallowell, ex-PF72) | K500 | 1654 | Walsh - Kaiser, Providence, USA | 4.1943 | 14.7.1943 | 10/1943 | to USA 5.1946 |
| Antigua (ex-Hammond, ex-PF73) | K501 | 1655 | Walsh - Kaiser, Providence, USA | 4/1943 | 26.7.1943 | 11/1943 | to USA 5.1946 |
| Ascension (ex-Hargood, ex-PF74) | K502 | 1656 | Walsh - Kaiser, Providence, USA | 4/1943 | 7.8.1943 | 11/1943 | to USA 5.1946 |
| Bahamas (ex-Hotham, ex-PF75) | K503 | 1657 | Walsh - Kaiser, Providence, USA | 4/1943 | 17.8.1943 | 12/1943 | to USA 6.1946 |
| Barbados (ex-Halstead, ex-PF76) | K504 | 1658 | Walsh - Kaiser, Providence, USA | 5/1943 | 27.8.1943 | 12/1943 | to USA 4.1946 |
| Caicos (ex-Hannam, ex-PF77) | K505 | 1659 | Walsh - Kaiser, Providence, USA | 4/1943 | 6.9.1943 | 12/1943 | to USA 12.1945 |
| Cayman (ex-Harland, ex-PF78) | K506 | 1660 | Walsh - Kaiser, Providence, USA | 7/1943 | 6.9.1943 | 1/1944 | to USA 4.1946 |
| Dominica (ex-Harman, ex-PF79) | K507 | 1661 | Walsh - Kaiser, Providence, USA | 7/1943 | 14.9.1943 | 1/1944 | to USA 4.1946 |
| Labuan (ex-Gold Coast, ex-Harvey, ex-PF80) | K584 | 1662 | Walsh - Kaiser, Providence, USA | 8/1943 | 21.9.1943 | 2/1944 | to USA 5.1948 |
| Montserrat (ex-Hornby, ex-PF82) | K586 | 1664 | Walsh - Kaiser, Providence, USA | 8/1943 | 27.9.1943 | 8/1944 | to USA 6.1946 |
| Nyasaland (ex-Hoste, ex-PF83) | K587 | 1665 | Walsh - Kaiser, Providence, USA | 9/1943 | 6.10.1943 | 7/1944 | to USA 4.1946 |
| Papua (ex-Howett, ex-PF84) | K588 | 1666 | Walsh - Kaiser, Providence, USA | 9/1943 | 10.10.1943 | 7/1944 | to USA 5.1946 |
| Perim (ex-Sierra Leone, ex-Phillimore, ex-PF89) | K593 | 1671 | Walsh - Kaiser, Providence, USA | 10/1943 | 5.11.1943 | 2/1944 | to USA 5.1946 |
| Pitcairn (ex-Pilford, ex-PF85) | K589 | 1667 | Walsh - Kaiser, Providence, USA | 9/1943 | 15.10.1943 | 7/1944 | to USA 6.1946 |
| St. Helena (ex-Pasley, ex-PF86) | K590 | 1668 | Walsh - Kaiser, Providence, USA | 9/1943 | 20.10.1943 | 2/1944 | to USA 4.1946 |
| Sarawak (ex-Patton, ex-PF87) | K591 | 1669 | Walsh - Kaiser, Providence, USA | 9/1943 | 25.10.1943 | 2/1944 | to USA 5.1946 |
| Seychelles (ex-Peard, ex-PF88) | K592 | 1670 | Walsh - Kaiser, Providence, USA | 9/1943 | 30.10.1943 | 2/1944 | to USA 6.1946 |
| Somaliland (ex-Popham, ex-PF90) | K594 | 1672 | Walsh - Kaiser, Providence, USA |
10/1943 |
11.11.1943 | 2/1944 | to USA 5.1946 |
|
Tobago (ex-Hong Kong, ex-Holmes, ex-PF81) |
K585 | 1663 | Walsh - Kaiser, Providence, USA | 8/1943 | 27.9.1943 | 8/1944 | to USA 5.1946 |
| Tortola (ex-Peyton, ex-PF91) | K595 | 1673 | Walsh - Kaiser, Providence, USA | 10/1943 | 16.11.1943 | 5/1944 | to USA 5.1946 |
| Zanzibar (ex-Prowse, ex-PF92) | K596 | 1674 | Walsh - Kaiser, Providence, USA | 10/1943 | 21.11.1943 | 6/1944 | to USA 5.1946 |
|
Displacement standard, t |
1509 |
|
Displacement full, t |
2238 |
|
Length, m |
87.0 wl 92.6 oa |
|
Breadth, m |
11.4 |
|
Draught, m |
3.86 deep load |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 boilers |
|
Power, h. p. |
5500 |
|
Max speed, kts |
20 |
|
Fuel, t |
oil 674 |
|
Endurance, nm(kts) |
7300(11) |
|
Armament |
3 x 1 - 76/50 Mk 20, 2 x 2 - 40/56 Bofors Mk 1.2, (4 - 8) x 1 - 20/70 Oerlikon Mk 4, 1 x 24 - 178 Hedgehog ASWRL, 4 DCT, 2 DCR (64 DC) |
|
Sensors |
SA, SL radars, QGA sonar |
|
Complement |
190 |
Project history: US-built frigates of Tacoma class, delivered by lend-lease in 1944. They represented "River" design modified under possibilities of US yards. The basic difference consisted in all-welded hulls instead of riveted. Armament structure was similar accepted on USN destroyer escorts. In total about 100 ships were built in the USA, 21 were transferred to UK.
Modernizations: 1944 - 1945, all: + (2 - 6) - 20/70 Oerlikon Mk II/IV, 4 DCT. DC stowage was increased up to 160.
1/1946: 3 x 1 - 76/50 Mk 21, 2 x 2 - 40/56 Mk 1, 6 x 1 - 20/70 Mk 10, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 8 DCT, 2 DCR (64 DC), SA, SL radars, QGA sonar
Naval service: Caicos was employed as radar picket.
Many thanks to Wolfgang Stöhr for additional information on this page.

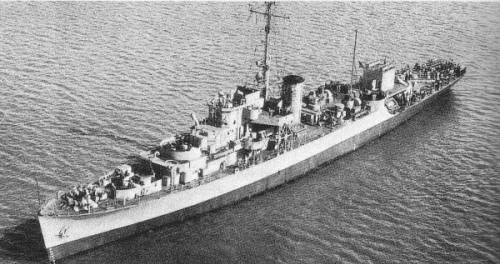

sister-ship Peoria 1945
