nearly sister-ship TB25 1886
|
Names |
TB30 TB31, 1906- TB031 TB32 TB33, 1906- TB033 TB61, 1906- TB061 TB62 TB63 - 74, 1906- TB063 - 074 TB75 TB76 - 78, 1906- TB076 - 078 |
|
Builders |
Yarrow, Poplar: TB30-33, 61-78 |
|
Completed |
1886: TB30 - 33 1887: TB61 - 78 |
|
Losses |
TB064 (21.3.1915), TB75 (8.8.1892) |
|
Transfers |
none |
|
Discarded |
1905: TB30, 32, 62 1908: TB069 1909: TB061 1913: TB031 1919: TB033, 063, 065, 070, 072, 078 1920: TB066 - 068, 074, 076, 077 1923: TB071, 073 |
|
Displacement normal, t |
60 |
|
Displacement full, t |
|
|
Length, m |
38.2 |
|
Breadth, m |
3.96 |
|
Draught, m |
|
|
No of shafts |
1 |
|
Machinery |
1 2-cyl VC, 1 locomotive boiler |
|
Power, h. p. |
670 |
|
Max speed, kts |
19.5 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 25/40 Nordenfelt Mk I, 1 - 356 TT (bow), 2 x 2 - 356 TT |
|
Complement |
16 |
Project history: Ordered at the same time and to much the same basic concept as the Thornycroft boats, the Yarrow 125ft design differed in having a better-designed ram bow and so did not have to be rebuilt.
Modernizations: 1901-08, all survived: were reboilered with water-tube boilers
1915-1917, many: - 2 x 1 - 25/40; + 1 x 1 - 47/40 3pdr Hotchkiss Mk I, DCR
Naval service: TB75 was lost in collision in 1892; most of the rest were reboilered in the first decade of the twentieth century. Many boats served during the war as patrol boats, and TB064 was wrecked in 1915.

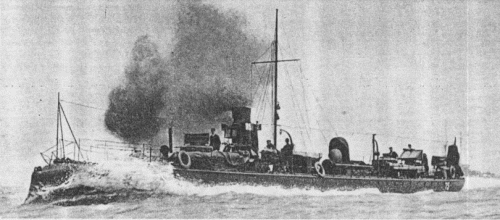

TB75
