TB23 1886
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| TB23 | 666 | Yarrow, Poplar | 1885 | 1886 | 1886 | Discarded 1905 | |
| TB24 | 667 | Yarrow, Poplar | 1885 | 1886 | 1886 | Discarded 1904 |
|
Displacement normal, t |
67 |
|
Displacement full, t |
|
|
Length, m |
34.6 oa |
|
Breadth, m |
3.84 |
|
Draught, m |
2.06 |
|
No of shafts |
1 |
|
Machinery |
1 2-cyl VCE, 1 locomotive boiler |
|
Power, h. p. |
TB23: 600 TB24: 500 |
|
Max speed, kts |
18.75 |
|
Fuel, t |
coal 12 |
|
Endurance, nm(kts) |
1056 (10) |
|
Armament |
2 x 1 - 47/40 3pdr Hotchkiss Mk I, 2 - 356 TT (bow), 1 x 1 - 356 TT |
|
Complement |
14 |
Project history: Neither were considered worth reboilering.
Modernizations: None.
Naval service: No significant events.

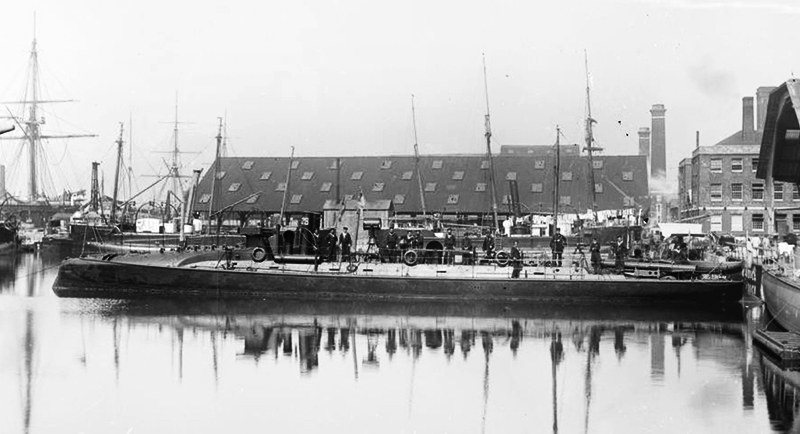

TB23
