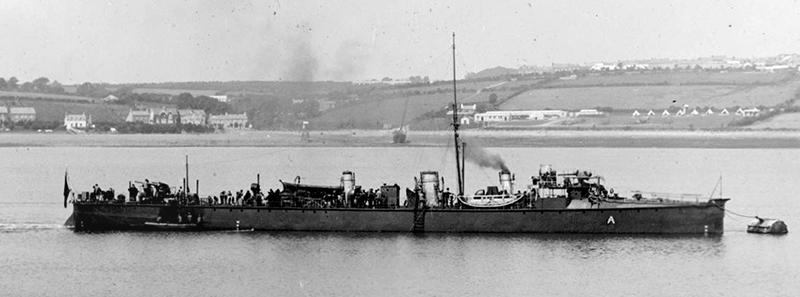

Sunfish 1902
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sunfish | D47, D2A, D81 | 325 | Hawthorn Leslie, Hebburn | 29.8.1894 | 28.5.1895 | 2.1896 | sold 6.1920 |
| Opossum | D12, D99, D62 | 326 | Hawthorn Leslie, Hebburn | 17.9.1894 | 9.8.1895 | 3.1896 | sold 7.1920 |
| Ranger | D1A | 327 | Hawthorn Leslie, Hebburn | 17.9.1894 | 4.10.1895 | 6.1896 | sold 5.1920 |
|
Displacement normal, t |
310 |
|
Displacement full, t |
340 |
|
Length, m |
62.2 oa 61.0 pp |
|
Breadth, m |
5.79 |
|
Draught, m |
2.62 |
|
No of shafts |
2 |
|
Machinery |
2 3-cyl VTE, 8 Yarrow boilers |
|
Power, h. p. |
4000 |
|
Max speed, kts |
27 |
|
Fuel, t |
coal 62 |
| Endurance, nm(kts) | 3000(10) |
|
Armament |
1 x 1 - 76/40 12pdr 12cwt QF Mk I, 5 x 1 - 57/40 6pdr Hotchkiss Mk I, 2 x 1 - 450 TT (4) |
|
Complement |
58 |
Project history: Before the Havock had completed it was decided to order another six destroyers from Thornycroft and Yarrow. Another nine were ordered from other builders making up, a few months later, the 1893/94 Programme. Apart from a slight increase in size the main difference was that the gun armament was increased by 2 57mm guns. The first six (the Thornycroft and Yarrow boats) had a bow tube fitted, but it was found to throw up clouds of spray in anything except a flat calm, had a bad effect on seakeeping and was soon removed.
These sturdy vessels had three funnels.
Modernizations: None.
Naval service: No significant events.
Ranger
