Grasshopper 1888
Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
Grasshopper | Sheerness DYd | 27.4.1886 | 30.8.1887 | 7.1888 | sold 7.1905 | ||
Sandfly | Devonport DYd | 19.4.1886 | 20.9.1887 | 7.1888 | sold 3.1905 | ||
Spider | Devonport DYd | 9.6.1886 | 17.10.1887 | 12.1888 | sold 5.1903 |
Displacement normal, t |
526 |
Displacement full, t |
|
Length, m |
61.0 pp |
Breadth, m |
7.01 |
Draught, m |
3.15 |
No of shafts |
2 |
Machinery |
2 3-cyl VTE, locomotive boilers |
Power, h. p. |
natural draught: 1600, forced draught: 2700 |
Max speed, kts |
natural draught: 16.7, forced draught: 19.2 |
Fuel, t |
coal 100 |
Endurance, nm(kts) | 2400(10) |
Armament |
1 x 1 - 102/27 BL Mk II/III/IV/V/VI, 6 x 1 - 47/40 3pdr Hotchkiss Mk I, 2 - 356 TT (1 bow, 1 stern, aw), 2 x 1 - 356 TT (8 at all) |
Complement |
66 |
Project history: Very similar to Rattlesnake, but lighter, these vessels were engined by Maudslay. Their performance was not as good as their near-sister however.
Modernizations: None.
Naval service: No significant events.
Sandfly

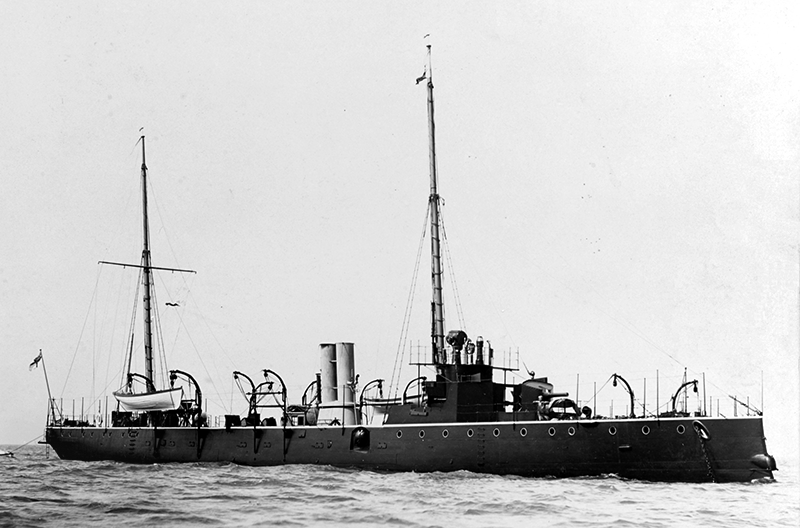

Grasshopper
