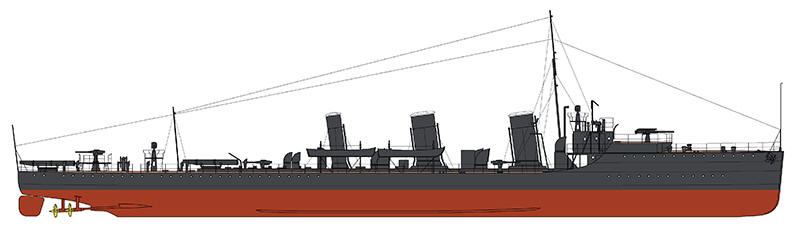

Beagle as planned with 5 76mm guns
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| Beagle | HC5 | John Brown, Clydebank | 3.1909 | 16.10.1909 | 4.1910 | sold for BU 11.1921 | |
| Bulldog | HC7, HC4 | John Brown, Clydebank | 3.1909 | 13.11.1909 | 7.1910 | sold for BU 9.1920 | |
| Grasshopper | H17, H60 | Fairfield, Govan | 4.1909 | 23.11.1909 | 7.1910 | sold for BU 11.1921 | |
| Harpy | D88, H19, H71 | White, Cowes | 4.1909 | 27.11.1909 | 7.1910 | sold for BU 11.1921 | |
| Renard | H99 | 691 | Cammell Laird, Birkenhead | 4.1909 | 30.11.1909 | 9.1910 | sold for BU 8.1920 |
| Foxhound | H16, H58 | John Brown, Clydebank | 4.1909 | 11.12.1909 | 5.1910 | sold for BU 11.1921 | |
| Wolverine | H18 | 692 | Cammell Laird, Birkenhead | 4.1909 | 15.1.1910 | 9.1910 | collision 12.12.1917 |
| Mosquito | HA3 | Fairfield, Govan | 4.1909 | 27.1.1910 | 8.1910 | sold for BU 8.1920 | |
| Basilisk | D89, HC8 | White, Cowes | 5.1909 | 9.2.1910 | 9.1910 | sold for BU 11.1921 | |
| Scourge | D96, H8A | Hawthorn Leslie, Hebburn | 3.1909 | 11.2.1910 | 8.1910 | sold for BU 5.1921 | |
| Racoon | HA7 | 693 | Cammell Laird, Birkenhead | 5.1909 | 15.2.1910 | 10.1910 | wrecked 9.1.1918 |
| Scorpion | D90, HC3 | Fairfield, Govan | 5.1909 | 19.2.1910 | 8.1910 | sold for BU 10.1921 | |
| Savage | D92, HA9 | Thornycroft, Woolston | 3.1909 | 10.3.1910 | 8.1910 | sold for BU 5.1921 | |
| Rattlesnake | D94, HC7 | London & Glasgow Co, Govan | 4.1909 | 14.3.1910 | 8.1910 | sold for BU 5.1921 | |
| Pincher | D87, HC2 | Denny, Dumbarton | 5.1909 | 15.3.1910 | 9.1910 | wrecked 24.7.1918 | |
| Nautilus, 12.1913- Grampus | H07, H38, HA7 | Thames Iron Works, Blackwall | 4.1909 | 30.3.1910 | 9.1911 | sold for BU 9.1920 |
|
Displacement normal, t |
945 average |
|
Displacement full, t |
~1100 |
|
Length, m |
80.4 - 83.8 pp |
|
Breadth, m |
8.19 - 8.56 |
|
Draught, m |
2.59 average |
|
No of shafts |
3 |
|
Machinery |
3 Parsons steam turbines, 5 Yarrow boilers Basilisk, Harpy: 3 Parsons steam turbines, 5 White-Forster boilers |
|
Power, h. p. |
14300 |
|
Max speed, kts |
27 |
|
Fuel, t |
coal 205 - 236 |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 102/40 BL Mk VIII, 3 x 1 - 76/40 12pdr 12cwt QF Mk I, 2 x 1 - 533 TT (4) |
|
Complement |
96 |
Project history: For the destroyers of the 1908-09 Programme the Admiralty decided against a repetition of the 'Tribals', partly because of their excessive cost but also because of their frailty. There was also a strong feeling against using oil fuel, which was then difficult to obtain. These arguments were reinformed by a report that a new German destroyer G137 had reached a mean speed of just over 33kts on a displacement of 372t for 4 hours. Understandably there was consternation at a coal-burner achieving the same speed as the oil-burning 'Tribals'. A sketch design was prepared in June 1908, but oil fuel was immediately deleted, and the final design was approved the following month. After orders had been placed a 102mm Mk.VIII was substituted for the 2 12pdr/12cwt mounted side-by-side on the forecastle. The new RGF Mk.VIII 533mm torpedo with the Hardcastle heater was adopted in this class. It ran at 50kts for 900m or 10,900m at 30kts. A major improvement was the siting of the forecastle gun on a raised platform, but the after TT was frequently unusable right aft over the rudder (during the war it was replaced by a 47mm AA gun in some boats). Like the 'Rivers' the Beagles sacrificed nominal speed for a more realistic sea speed. In trials against the 'Tribals' they repeatedly showed superior endurance. Designated the 'G' class from October 1913.
Modernizations: 1915-1917, Beagle, Bulldog, Harpy, Foxhound, Basilisk, Scourge, Rattlesnake, Grampus, Renard, Wolverine, Mosquito, Racoon, Pincher: + 1 x 1 - 47/50 3pdr Vickers Mk I
1915-1917, Scorpion: - 1 x 1 - 76/40; + 1 x 1 - 47/50 3pdr Vickers Mk I
1917-1918, Beagle, Bulldog, Harpy, Foxhound, Rattlesnake, Grampus, Grasshopper, Renard, Wolverine, Mosquito, Racoon, Scorpion, Savage, Pincher: + 1 DCT
Naval service: Pincher wrecked 24.7.1918 on the Seven Stones. Racoon wrecked 9.1.1918 on West Coast of Ireland. Wolverine sunk 12.12.1917 in collision with sloop Rosemary off NW coast of Ireland.

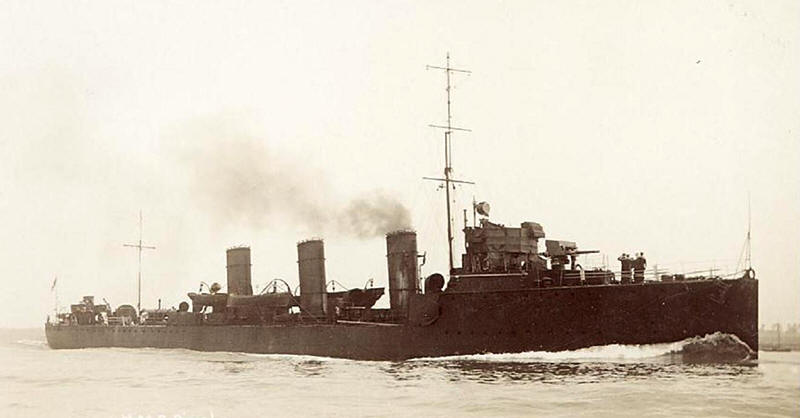

Scourge 1910 trials
(Navypedia)

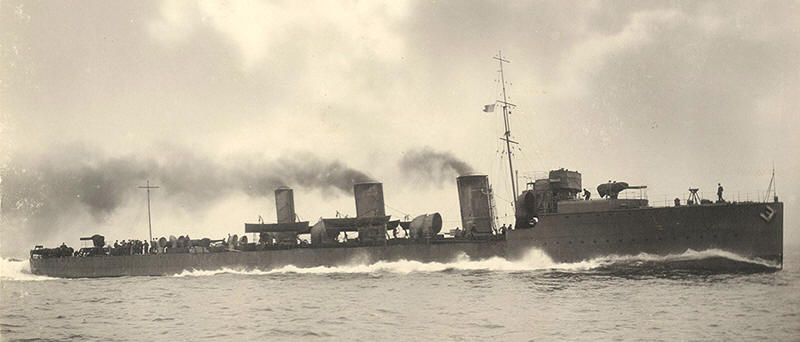

Beagle 1910 (A.Dashyan)

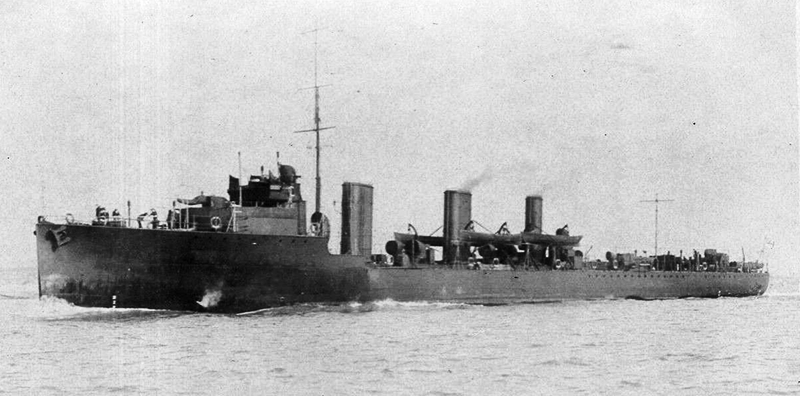

Basilisk
Pincher
