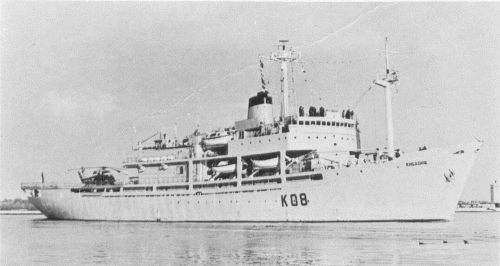

Engadine 1977
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Engadine | K08 | 500 | Robb, Leith | 9.8.1965 | 16.9.1966 | 15.12.1967 | sold 2.1990 |
|
Displacement standard, t |
|
|
Displacement full, t |
9000 |
|
Length, m |
129.3 |
|
Breadth, m |
17.8 |
|
Draught, m |
6.70 |
|
No of shafts |
1 |
|
Machinery |
Sulzer diesel |
|
Power, h. p. |
5500 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
6 helicopters (4 Wessex, 2 Wasp) |
| Sensors | 3x radars |
|
Complement |
77 |
Project history: Intended for training of helicopter crews in deep water operations.
Modernizations: 1980s: + 2x Corvus decoy RL
Naval service: No significant events.
Many thanks to Wolfgang Stöhr for additional information on this page.
Engadine 1980
© Ivan Gogin, 2015
