ROYAL NAVY (UNITED KINGDOM)

AIRCRAFT CARRYING SHIPS

ATLANTIC CONVEYOR aviation support ships (1969-1970/1982)

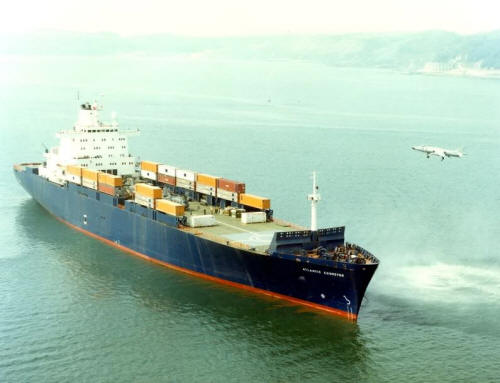

Atlantic Conveyor 1982

Name No Yard No Builder Laid down Launched Comp Fate
Atlantic Causeway   1 Swan Hunter, Walker on Tyne   2.4.1969 11.1969 // 14.4.1982 returned late 1982
Atlantic Conveyor   2 Swan Hunter, Walker on Tyne   25.8.1969 3.1970 // 14.4.1982 sunk 28.5.1982



Displacement standard, t

14950 BRT 18146 dwt

Displacement full, t

~35000

Length, m

212.0 oa 197.0 pp

Breadth, m

28.1

Draught, m

9.0

No of shafts

2

Machinery

4 sets Associated Electrical Industries geared steam turbines, 2 boilers

Power, h. p.

38500

Max speed, kts

23

Fuel, t

oil
Endurance, nm(kts)

Armament

14 VSTOL attackers, 11 helicopters

Electronic equipment

radars

Complement

165

Aircraft facilities: Aircraft based on deck.

Year VSTOL attackers helicopters
5.1982, Atlantic Causeway --- 8 Sea King HAS.2A, 20 Wessex HU.5
5.1982, Atlantic Conveyor 8 Sea Harrier FRS.1, 6 Harrier GR.3 4 Chinook HC.1, 6 Wessex

Project history: Former container ships, requisitioned by MoD and used as aircraft support ships. Aircraft was based on deck and all aircraft equipment was stowed in containers.

Modernizations: None.

Naval service: Atlantic Conveyor was attacked 25.5.1982 in 90nm NE of Port Stanley (Falklands) by two Argentine Super Etendard fighter-bombers, one AM39 Exoset ASM hit the ships. Atlantic Conveyor sunk 28.5.1982 under tow.

Many thanks to Wolfgang Stöhr for additional information on this page.

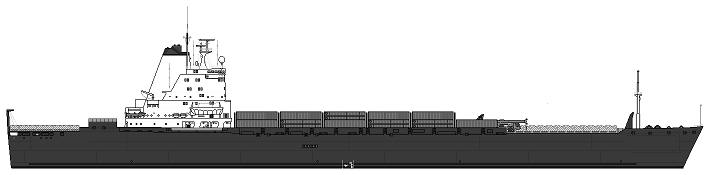

Atlantic Conveyor 1982
