EAGLE fleet aircraft carriers (1951-1955)

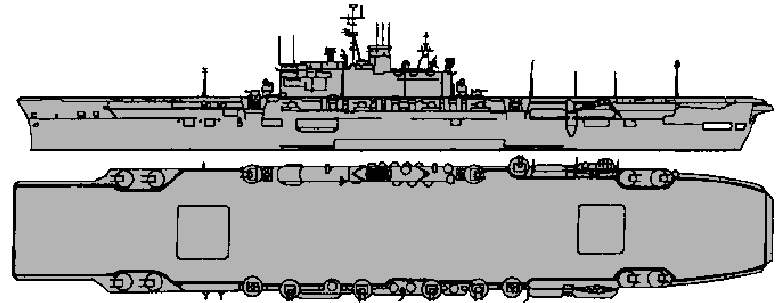

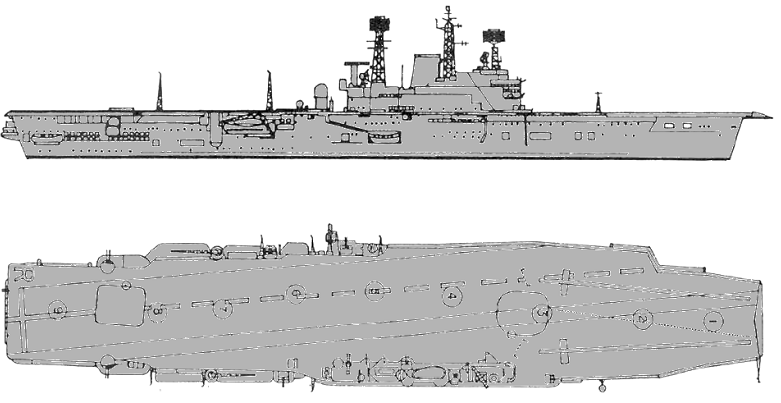

Eagle as designed

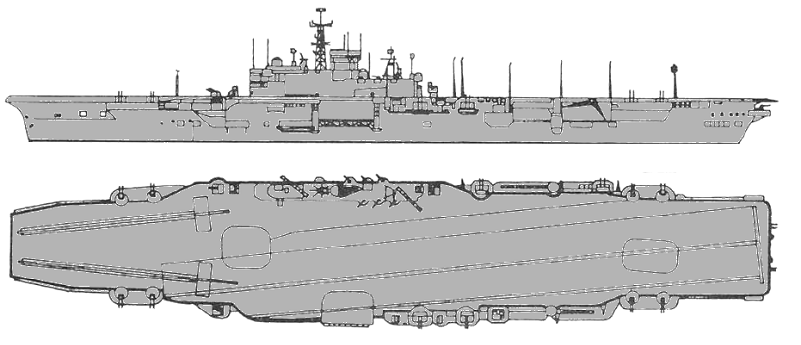

Eagle 1951

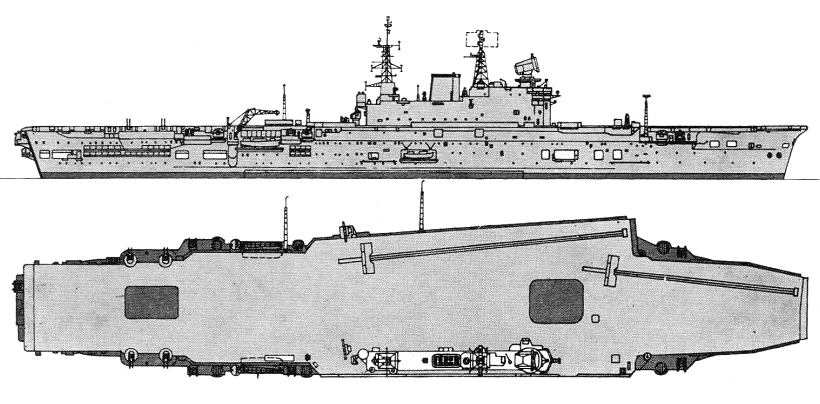

Eagle 1959

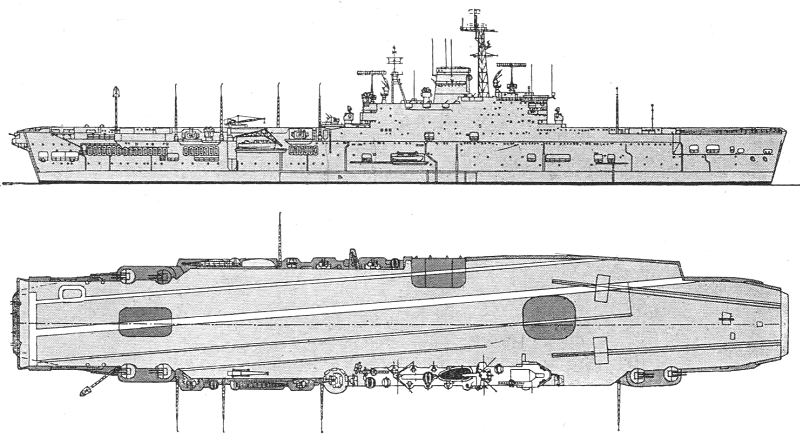

Eagle 1964

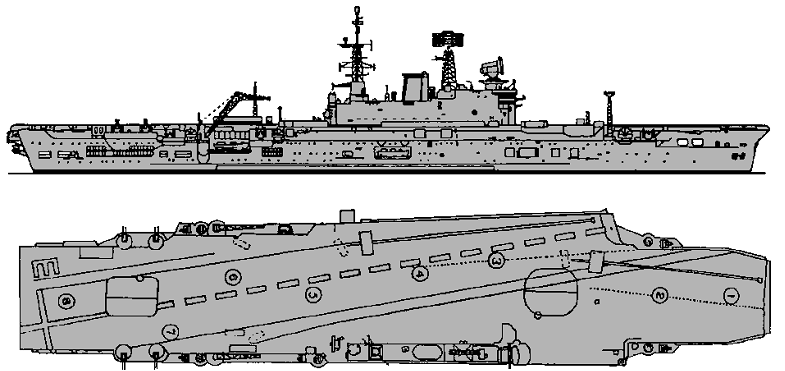

Eagle 1968
Ark Royal 1955

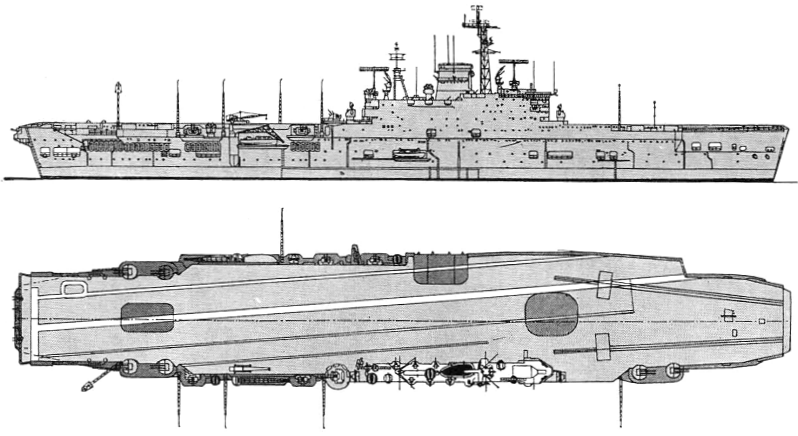

Ark Royal 1965
Ark Royal 1968
Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
Eagle (ex-Audacious) | R05 | 1220 | Harland & Wolff, Belfast | 24.10.1942 | 19.3.1946 | 1.10.1951 | stricken 10.1978 |
Eagle | 73 | Vickers-Armstrong, Tyne | 19.4.1944 | --- | --- | cancelled 1.1946 | |
Ark Royal | R09 | 1119 | Cammell Laird, Birkenhead | 3.5.1943 | 3.5.1950 | 25.2.1955 | stricken 2.1979 |
Data variant | as designed |
Displacement standard, t |
36800 |
Displacement full, t |
46000 |
Length, m |
219.5 pp 245.0 oa |
Breadth, m |
34.4 wl 31.2 fd |
Draught, m |
9.50 deep load |
No of shafts |
4 |
Machinery |
4 sets Parsons geared steam turbines, 8 Admiralty 3-drum boilers |
Power, h. p. |
152000 |
Max speed, kts |
32 |
Fuel, t |
7490 oil |
Endurance, nm(kts) | 5000(24) |
Armour, mm |
belt: 114, hangar sides: 38, bulkheads: 114 - 38, flight deck: 102 |
Armament |
8 x 2 - 114/45 QF Mk III, 8 x 8 - 40/39 2pdr QF Mk VIII, 60 - 20/70 Oerlikon Mk II/IV, 78 aircraft (Seafire, Firefly, Sea Hornet, Sea Fury fighters, Barracuda, Firebrand torpedo bombers) |
Electronic equipment |
radars |
Complement | 2740 |
Aircraft facilities As designed (fd - 7,560m², ha - 4,840m² / 25,652m³): Flight deck: 242.3(useful length) x 31.2m. Upper and lower hangars were 5.3m in height and had useful area 4840m2 summary. There were 2 lifts (13.6t, 16.5x13.4m fwd and 16.5x10.0m aft). There were 2 catapults BH-V (13.6t plane was launched at 139km/h). Aircraft fuel stowage was 465,000l.
Eagle (fd - ~ 12,765m², ha - 4,840m² / 25,652m³): Flight deck: 245.0 (useful length)x52.1m. Upper and lower hangars were 5.3m in height and had useful area 4840m2 summary. There were 2 lifts (13.6t, 16.5x13.4m fwd and 16.5x10.0m aft). There were 2 catapults BH-V (13.6t plane was launched at 153km/h). Aircraft fuel stowage was 1,700,000l of kerosine and 72,000l of petrol.
Ark Royal: (fd - ~ 12,275m², ha - 4,840m² / 25,652m³), Ark Royal: 5.5°angled flight deck: 245.0 (useful length)x50.1m. Upper and lower hangars were 5.3m in height and had useful area 4840m2 summary. There were 3 lifts (13.6t, 16.5x13.4m fwd and 16.5x10.0m aft centreline lifts and 13.6t, 17.5x10.7m deck edge lift for upper hangar). There were 2 catapults BH-V (46m, on foredeck and on angled deck) (13.6t plane was launched at 153km/h). Aircraft fuel stowage was 1,460,000l of kerosine and 314,000l of petrol. Angled deck catapult was lengthened to 61m in 1970.
Project history: Much improved Illustrious would have flight deck protected by 102mm armour on 25mm plating. Very large hangar had area as on Ark Royal. Underwater protection was modified, two sea water-filled outer compartments there were. It was planned that this protection can resist explosion of 545kg warhead and possibly 908kg. Late 1945 they planned to arm these ships by 8 x 6, 2 x 2 and 12 x 1 40mm Boforses and 18 20mm Oerlikons.
Protection as designed: Flight deck had 102mm of armour, lying over 25mm steel plates inside and 37mm outside citadel. There was 64-25mm lower hangar deck, magazines and steering gear were protected by 114 - 51mm vertical and 102mm horizontal armour. Hangar sides had 38mm protection. Underwater protection was a modification of previous designs, longitudinal bulkhead was 63mm thick.
Protection, Eagle: Flight deck had 102mm armour lying over 25mm steel plates. There was 64-38mm lower hangar deck, magazines and steering gear were protected by 114 - 51mm vertical and 102mm horizontal armour. Underwater protection was a modification of previous designs.
Protection, Ark Royal: There was 51-25mm lower hangar deck, magazines and steering gear were protected by 114 - 51mm vertical and 102mm horizontal armour. Underwater protection was a modification of previous designs.
Data variant | Eagle as completed |
Displacement standard, t |
43060 (finally nearly 45000) |
Displacement full, t |
53390 |
Length, m |
219.5 pp 245.0 oa (finally 247.4) |
Breadth, m |
34.4 wl 52.1 fd |
Draught, m |
11.0 |
No of shafts |
4 |
Machinery |
Parsons geared steam turbines, 8 Admiralty 3-drum boilers |
Power, h. p. |
152000 |
Max speed, kts |
31 |
Fuel, t |
oil 5500 |
Endurance, nm(kts) | 4500(24) |
Armour, mm |
belt: 102, hangar sides: 25, flight deck: 102 - 25, hangar deck: 51 - 25 |
Armament |
8 x 2 - 120/45 Mk 6, 8 x 6 - 40/60 Mk 6, 2 x 2 - 40/60 Mk 5, 9 x 1 - 40/60 Mk 7, 60 aircraft (Firefly, Sea Hornet, Sea Fury, Attacker fighters, Barracuda, Firebrand torpedo bombers, Firefly ASW planes, Hoverfly, Dragonfly, Sycamore helicopters) |
Electronic equipment |
type 960, type 940, type 982, type 983, type 242Q, type 293Q, 4x type 275, 10x type 262, type 974 radars |
Complement | 2750 |
Year | Fighters | Attackers | ASW planes | Early warning planes | Helicopters |
1953 Eagle | 16 Attacker FB.2, 8 Sea Hornet NF.21 | --- | 16 Firefly | 4 Skyraider AEW.1 | 1 Dragonfly HR.5 |
1956 Eagle | 16 Sea Hawk FGA.6, 14 Sea Venom FAW.21 | 6 Wyvern S.4 | 6 Gannet AS.4 | --- | --- |
1960 Ark Royal | 14 Scimitar F.1, 6 Sea Vixen FAW.1 | --- | --- | 4 Gannet AEW.3 | 14 Whirlwind HAS.7, 1 Dragonfly HR.5 |
1966 Eagle | 16 Sea Vixen FAW.2, 4 Scimitar F.1 | 14 Buccaneer S.1 | --- | 4 Gannet AEW.3 | 5 Wessex HAS.1, 1 Whirlwind HAR.5 |
1977 Ark Royal | 14 Phantom FG.1 | 12 Buccaneer S.2 | --- | 5 Gannet AEW.3 | 7 Sea King HAS.1, 1 Wessex HU.5 |
Modernizations: 2.1955, Eagle: angled deck (5.50) was fitted. - 1 x 6 - 40/60, 3 x 1 - 40/60, 1x type 262 radar
1956, Ark Royal: - 2 x 2 - 120/45, 1x type 275 radar
9.1959, Ark Royal: deck edge lift removed; - 2 x 6 - 40/60, 6 x 1 - 40/60, 2x type 262 radars; + type 965M radar
1961, Ark Royal: new more powerful catapults fitted
(Devonport DYd, 5.1959 - 5.1964), Eagle: new angled deck (8.50), catapults replaced by new B5-4 type (13.6t planes dispersed up to 195km/h). Starboard catapult was 46m length, port catapult was 61m. Thickness of flight deck reduced to 38 - 25mm. Power of electric station doubled. New armament and sensors: 6 x 4 Sea Cat GWS22 SAM (24 Sea Cat), 4 x 2 - 114/45 Mk 6, 45 aircraft (Sea Vixen, Scimitar fighters, Buccaneer attackers, Sea Venom, Gannet ECM planes, Gannet EEW planes, Dragonfly, Whirlwind, Wessex, Wasp helicopters), type 984, type 963, type 965 (AKE-2), type 242Q, type 293Q, 4x type 275 radars, ADA CCS. Half of lower hangar area was used as workshops.
Data variant | Ark Royal as completed |
Displacement standard, t |
43340 |
Displacement full, t |
53060 |
Length, m |
219.5 pp 245.0 oa (finally 247.4) |
Breadth, m |
34.4 wl 50.1 deck |
Draught, m |
11.0 |
No of shafts |
4 |
Machinery |
4 sets Parsons geared steam turbines, 8 Admiralty 3-drum boilers |
Power, h. p. |
152000 |
Max speed, kts |
31 |
Fuel, t |
5500 oil |
Endurance, nm(kts) | 4500(24) |
Armour, mm |
belt: 102, hangar sides: 25, flight deck: 102 - 25, hangar deck: 51 - 25 |
Armament |
6 x 2 - 120/45 Mk 6, 6 x 6 - 40/60 Mk 6, 2 x 2 - 40/60 Mk 5, 6 x 1 - 40/60 Mk 7, 50 aircraft (Sea Hawk, Wyvern, Sea Venom fighters, Firefly, Avenger, Gannet ASW planes, Skyraider EEW planes, Dragonfly, Sycamore helicopters) |
Electronic equipment |
type 960, 2õ type 982, 2õ type 983, 3x type 275, 8x type 262, type 974 radars |
Complement | 2637 |
11.1964, Ark Royal: new angled deck (8.5°), thickness of flight deck was decreased to 38mm; - 2 x 2 - 120/45
2.1970, Ark Royal: New armament and sensors: places reserved for 4 õ 4 Sea Cat GWS22 SAM, no guns, 36 aircraft (Sea Vixen, Phantom fighters, Buccaneer attackers, Gannet EW planes), type 960, 2õ type 982, 2õ type 983, 2x type 275, 4x type 262, 2x type 965M (AKE-2), type 974, SPN-35 radars
Naval service: Audacious was renamed Eagle in January 1946. Paid off 1.1972. Ark Royal was paid off 12.1978.
Many thanks to Wolfgang Stöhr for additional information on this page.
Eagle 1957

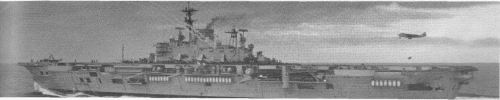

Ark Royal 1961
