Adventure 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Adventure | M23 | Devonport DYd | 29.11.1922 | 18.6.1924 | 5.5.1927 | repair ship 3.1944 |
|
Displacement standard, t |
6740 |
|
Displacement full, t |
8370 |
|
Length, m |
152.4 pp 158.5 (later 164.3) oa |
|
Breadth, m |
18.0 |
|
Draught, m |
5.23 deep load |
|
No of shafts |
2 |
|
Machinery |
2 sets Parsons geared steam turbines, 6 Yarrow boilers / 4 Vickers diesel-generators, 4 electric motors for cruising |
|
Power, h. p. |
40000 / 8000 |
|
Max speed, kn |
28 |
|
Fuel, t |
oil 1500 |
| Endurance, nm(kts) | 4500(15) |
| Armour, mm |
belt: 25, deck: 25 |
|
Armament |
4 x 1 - 120/40 QF Mk VIII, 4 x 1 - 47/40 Hotchkiss Mk I, 4 x 1 - 40/39 2pdr QF Mk II, 280 mines |
|
Complement |
395 |
Project history: Adventure was built under 1922 Programme as replacement for minelayer Princess Margaret. The first large ship built in Britain after the First World War. Many innovations have been brought in the design: for example, experimental machinery consisted of 2-shaft geared steam turbines sets (similar applied on cruisers of "C" and "D" types) on which shafts there were 2 2000hp electric motors. The electric power for them was produced by 4 diesels-generators with total 6600 kW power. Gases from diesels were deduced to own thin funnel standing end-to-end to the second main funnel. Diesel-electric propulsive plant was removed in 1941 as its funnel too.
Adventure became the first British ship with transom stern: it was supposed, that it will increase a propulsive efficiency but trials were found out, that mines can be attracted to a transom because of an arising zone of underpressure. It has compelled to rebuild in 1932 an aft end, having given to it more traditional "cruiser" outlines that has increased maximal length almost by 6m. Hull of Adventure in the plan had the same form, as Kent class cruisers: a trapezoid transferring to bulges below waterline. The short 25mm belt covered only machinery.
Protection: 25mm belt and deck protected machinery only. There were bulges.
Modernizations: 1932: new cruiser stern fitted, ship was lengthened; + 2 x 4 - 12.7/62
1938: - 4 x 1 - 40/39; + 1 x 8 - 40/39 2pdr QF Mk VIII
1941: diesel-electric machinery was fully removed.
4/1942: - 2 x 4 - 12.7/62; + 9 x 1 - 20/70 Oerlikon Mk II/IV, type 285, type 291 radars, type 128 sonar
Naval service: Ship was sold for BU 7.1947.

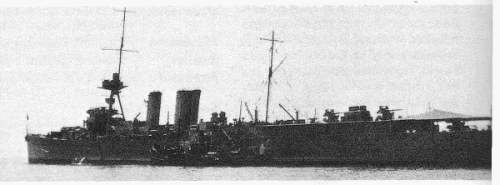

Adventure 1927
