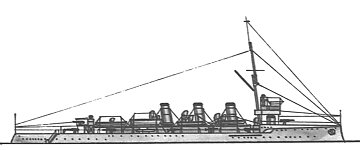

Sentinel 1905
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sentinel (ex-Inchkeith) | N73, N92 | 298 | Vickers, Barrow | 8.6.1903 | 19.4.1904 | 4/1905 | sold for BU 1.1923 |
| Skirmisher | D55, P55, N95 | 302 | Vickers, Barrow | 29.7.1903 | 7.2.1905 | 7.1905 | sold for BU 3.1920 |
|
Displacement normal, t |
2880 |
|
Displacement full, t |
|
|
Length, m |
109.7 pp 116.1 oa |
|
Breadth, m |
12.2 |
|
Draught, m |
4.27 |
|
No of shafts |
2 |
|
Machinery |
2 4-cyl. VTE, 12 Vickers-Express boilers |
|
Power, h. p. |
17000 |
|
Max speed, kts |
25 |
|
Fuel, t |
coal 410 |
| Endurance, nm(kts) | 3000(10) |
| Armour, mm |
deck: 38 - 16, CT: 76 |
|
Armament |
10 x 1 -76/50 12pdr 18cwt QF Mk I, 8 x 1 - 47/40 3pdr Hotchkiss Mk I, 2 - 450 TT (beam aw) |
|
Complement |
268 |
Project history: Eight cruisers were intended to work in company with destroyers as scouts, to lead torpedo attacks and to back up their flotillas when attacked by enemy destroyers. The Admiralty provided a broad specification for the ships and left the detailed design to the builders, a common practice when ordering torpedo craft but unusual with cruisers. The Admiralty requirement was for a 25kt ship, with a 38mm protective deck or equivalent side armour, shallow draught for operating in inshore waters, and an armament of 10 76mm, 8 47mm and 2 TT. They were ordered in four pairs which, as might be expected, resulted in four sub-classes that varied substantially in form, machinery and structure. Only one builder, Fairfield, followed traditional small cruiser style in providing a poop as well as a forecastle, but all abandoned the bulwarks amidships which had become a common feature of Victorian cruisers. The Armstrong pair differed from all the others in having four instead of three funnels and a clipper bow, while the Vickers ships had shorter funnels than the other ships. The Fairfield pair employed side armour abreast the machinery compartments with a protective deck at the ends, while Cammell provided side armour abreast the engine rooms only with a protective deck over the remainder of the ship, an expedient intended to protect the engine cylinders. The remaining ships were fitted in the usual manner with a full length protective deck. The 12pdr QF guns were mounted 3 abreast on the forecastle and aft and two on each side amidships, but this armament was heavily criticised for being too light.
Ship protection: 51mm belt protected only machinery, main deck with 16mm flat was connected with its lower edge by 38mm slopes.
Modernizations: 1905-1906, both: - 8 x 1 - 47/40; + 2 x 1 - 76/50 12pdr 18cwt QF Mk I, 6 x 1 - 57/40 6pdr Hotchkiss Mk I
1912, both: - 12 x 1 - 76/50, 6 x 1 - 57/40; + 9 x 1 - 102/40 QF Mk IV
by 1918, Sentinel: + 1 x 1 - 76/45 20cwt QF Mk I, 1 x 1 - 57/40 6dr Hotchkiss Mk I, 1 x 1 - 47/40 3pdr Hotchkiss Mk I
by 1918, Skirmisher: + 1 X 1 - 76/45 20cwt QF Mk I, 1 x 1 - 57/40 6pdr Hotchkiss Mk I
Naval service: Sentinel served as TS from 7.1920.

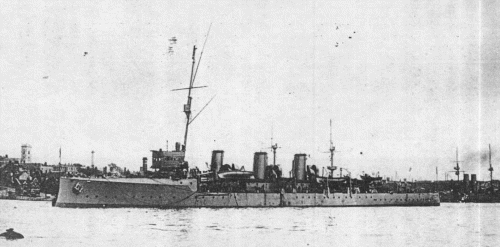

Sentinel 1905
Many thanks to Wolfgang Stöhr for additional information on this page.
