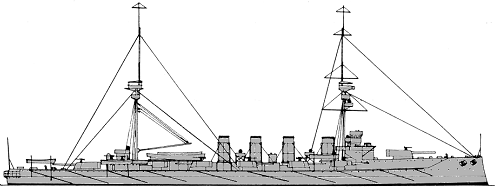

Minotaur 1909
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Minotaur | 91, 87, 71, N73 | Devonport DYd | 2.1.1905 | 6.6.1906 | 1.4.1908 | sold 4.1920 | |
| Shannon | 92, 8A, 74, N25 | Chatham DYd | 2.1.1905 | 20.9.1906 | 10.3.1908 | accommodation ship 1920, sold 12.1922 | |
| Defence | 05 | 240 | Pembroke DYd | 22.2.1905 | 24.4.1907 | 9.2.1909 | sunk 31.5.1916 |
|
Displacement normal, t |
14600 |
|
Displacement full, t |
|
|
Length, m |
149.4 pp 158.2 oa |
|
Breadth, m |
Minotaur, Defence: 22.7 Shannon: 23.0 |
|
Draught, m |
7.92 |
|
No of shafts |
2 |
|
Machinery |
Minotaur: 2 4-cyl VTE, 24 Babcock boilers Shannon, Defence: 2 4-cyl VTE, 24 Yarrow boilers |
|
Power, h. p. |
27000 |
|
Max speed, kts |
23 |
|
Fuel, t |
coal 2060 |
|
Endurance, nm(kts) |
8150(10) |
| Armour, mm | belt: 152 - 76, decks: 38 - 19, turrets: 203 - 114, barbettes: 190 - 76, ammunition tubes: 76 - 51, CT: 254 |
|
Armament |
2 x 2 - 234/50 BL Mk XI, 10 x 1 - 190/50 BL Mk II/V, 16 x 1 - 76/50 18cwt QF Mk I, 5 - 450 TT (sub, 1 bow, 4 beam) |
|
Complement |
755 |
Project history: These ships, provided under
the 1904/05 Programme, were the last and largest British armoured cruisers of
the conventional type. They were enlarged Warriors with displacement
increased by 1000t to allow for a heavier armament, which involved some
reductions in the level of protection. The result was outwardly impressive but
they were overgunned and under protected and the extra weight might well have
been employed lo better effect in additional deck protection. The 234mm guns
were carried in twin turrets fore and aft and the 190mm guns in ten single
turrets equally disposed on each side of the upper deck. The anti-torpedo boat
armament was considerably improved by the fitting of 76mm guns, which were
disposed on the forward and after superstructures and turret roofs.
The Shannon had a modified hull form and was 0.3m
wider than her sisters with slightly less draught, which resulted in some loss
of speed, and, despite achieving the highest power on trial, she recorded the
lowest speed, making 22.5kts compared with 22.9kts (Defence) and 23kts
(Minotaur).
Ship protection: The main belt was 152mm for a length of 83.0m amidships reducing to 102mm forward and 76mm aft. No side armour was provided between the main and upper decks, and the ammunition hoists for the 190mm turrets were provided with 178mm armour tubes between these decks reducing to 51mm behind the side armour between the main and lower decks. The 190mm barbettes were 178mm on the outboard side and 76mm inboard while the turrets had 203mm faces, 152mm sides and 114mm rears. The 234mm turrets had 203mm faces and 178mm sides and rears, while the barbettes were a uniform 178mm with 76mm floors. The forward 234mm ammunition hoist was protected by a 178mm tube from the barbette to the main deck and then reduced to 51mm, while aft the tube was 102mm only, being entirely behind the side armour. Deck protection was very weak with a 19mm protective deck increasing to 38mm over the steering gear and a main deck of 19mm amidships and 25mm fore and aft. Besides the forward 254mm CT they were fitted with an after CT protected by 76mm armour, both positions having a 76mm communication tube down to the protective deck.
Modernizations: 1909, all: funnels were raised by 4.6m
1917, Minotaur, Shannon: foremast became tripod; + 2 x 1 - 76/45 20cwt QF Mk I
Naval service: Defence was sunk by gunfire of German battleship Friedrich der Grosse at Jutland 31.5.1916, all hands lost. Shannon was damaged in collision with battleship Prince George in Portsmouth in December 1909, recommissioned in March 1912. She served as accommodation ship attached to HMS Actaeon until paid off in 1922.
Many thanks to Wolfgang Stöhr for additional information on this page.

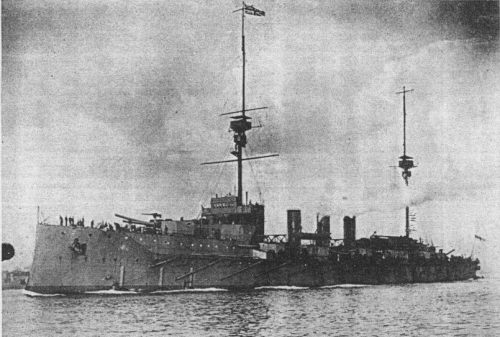

Shannon as built with short funnels
