| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ister | Devonport DYd | 8.11.1860 | --- | --- | cancelled 12.1864 | ||
| Endymion | Deptford DYd | 26.10.1860 | 18.11.1865 | 9.1866 | hulk 1885 | ||
| Blonde | Woolwich DYd | 10.9.1860 | --- | --- | cancelled 12.1863 | ||
| Astrea | Devonport DYd | 21.10.1861 | --- | --- | cancelled 12.1863 | ||
| Dartmouth | Woolwich DYd | 6.11.1860 | --- | --- | cancelled 12.1864 |
|
Displacement normal, t |
3197 |
|
Displacement full, t |
|
|
Length, m |
73.2 pp |
|
Breadth, m |
14.6 |
|
Draught, m |
5.26 hold depth |
|
No of shafts |
1 |
|
Machinery |
sails + rectangular boilers, 1 2-cyl HSE |
|
Power, h. p. |
Endymion: 1620ihp |
|
Max speed, kts |
Endymion: 11.3 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
22 x 1 - 163/18 32pdr SBML, 8 x 1 - 160/16 64pdr SBML |
|
Complement |
450 |
Project history: Frigates, 36 guns. Isaac Watts design was approved in 1860. Wooden hull.
Modernizations: 1866, Endymion: reduced to 21 guns.
Naval service: No significant events.

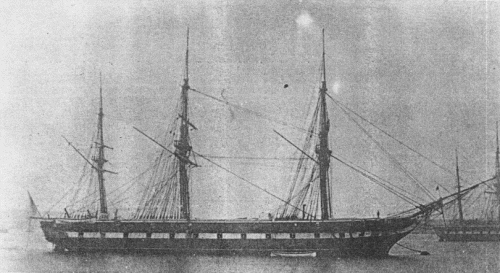

Endymion 1865
