Names |
Pahlawan, 1940 - ML1102 Panglima, 1940 - ML1103 Panji Peningat, 1940 - ML1104 (all Burma RNVR) |
|
Builders |
Thornycroft, Singapore: Pahlawan, Panglima, Panji, Peningat |
|
Completed |
1939: Pahlawan, Panglima, Panji, Peningat |
|
Losses |
Panji (1940), ML1104 (12/1942) |
|
Transfers |
none |
|
Discarding |
circa 1945: ML1102, 1103 |
|
Displacement standard, t |
60 |
|
Displacement full, t |
|
|
Length, m |
23.3 |
|
Breadth, m |
4.11 |
|
Draught, m |
1.45 |
|
No of shafts |
3 |
|
Machinery |
ML1102 - 1103: 2 Thornycroft diesels, 1 Thornycroft petrol engine ML1104: 3 Thornycroft diesels |
|
Power, h. p. |
ML1102 - 1103: 780 ML1104: 650 |
|
Max speed, kts |
ML1102 - 1103: 16 ML1104: 14 |
|
Fuel, t |
ML1102 - 1103: diesel oil, petrol ML1104: diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 47/40 3pdr Hotchkiss Mk I, 1 x 1 - 7.7/87, mechanical minesweeping gear |
|
Complement |
Project history: Site-build launches for service in Singapore.
Modernizations: circa 1943, both survived: + 1 x 1 - 20/70 Oerlikon Mk II/IV, type 291U radar
Naval service: no significant events.

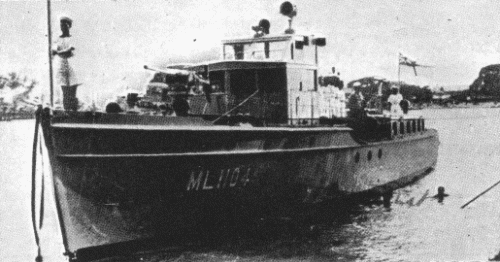

ML1104 1942
