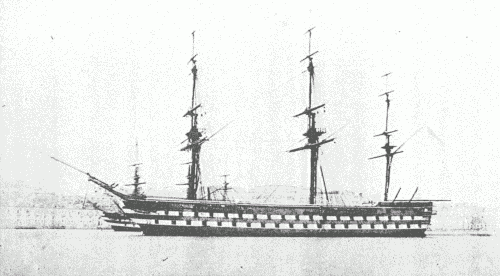

Renown
© Navypedia, 2008-20
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|
Revenge |
146 |
Pembroke DYd |
22.1.1854 |
16.4.1859 |
8.6.1861 |
Coast Guard 9.1865 |
|
|
Renown |
Chatham DYd |
20.12.1854 |
28.3.1857 |
20.2.1858 |
to North German Confederation 3.1870 (Renown) |
||
|
Atlas |
Chatham DYd |
23.2.1858 |
21.7.1860 |
1860 |
never fitted to sea, hospital ship 7.1881 |
||
|
Anson, 1.1883- Algiers |
Woolwich DYd |
1.10.1858 |
15.9.1860 |
1860 |
never fitted to sea, harbour vessel 9.1899 |
Displacement normal, t |
5260 |
Displacement full, t |
|
Length, m |
74.7 pp |
Breadth, m |
16.9 |
Draught, m |
7.47 |
No of shafts |
1 |
Machinery |
Renown: sails + boilers, 1 2-cyl HSE trunk Revenge, Anson, Atlas: sails + boilers, 1 2-cyl HSE |
Power, h. p. |
Renown: 3183ihp Revenge: 3249ihp Atlas: 3732ihp Anson: 3583ihp |
Max speed, kts |
Renown: 11.4 Revenge: 11.5 Atlas, Anson: 13 |
Fuel, t |
coal |
| Endurance, nm(kts) | |
Armament |
1 x 1 - 206/15 68pdr 95cwt shell SBML, 34 x 1 - 204/13 8'' 65cwt shell SBML, 36 x 1 - 163/18 32pdr 56cwt SBML, 20 x 1 - 161/16 32pdr 45cwt SBML |
Complement |
860 |
Project history: New 91-gun ships. Surveyor's design of 1856. Wooden hull.
Modernizations: None.
Naval service: Renown was transferred to North German Confederation in 1870 and served as TS under former name.
Thanks to Wolfgang Stöhr for additional information on this page.
