Hotspur 1871
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| Hotspur | 144 | Napier, Govan | 2.10.1868 | 19.3.1870 | 17.11.1871 | sold to BU 8.1904 |
Displacement normal, t |
4331 |
Displacement full, t |
|
Length, m |
71.6 pp |
Breadth, m |
15.2 |
Draught, m |
6.05 |
No of shafts |
2 |
Machinery |
2 2-cyl HSE, boilers |
Power, h. p. |
3497 |
Max speed, kts |
12.7 |
Fuel, t |
coal 300 |
|
Endurance, nm(kts) |
920(10) |
|
Armour, mm |
iron; belt: 279 - 203, breastwork: 203, gun house: 254 - 216, decks: 70 - 25, CT: 254 - 152 |
Armament |
1 x 1 - 305/12 MLR Mk II, 2 x 1 - 160/16 64pdr 71cwt MLR |
Complement |
209 |
Project history: Ironclad ram constructed to match similar French ships. The general layout was similar to Glatton but the freeboard was increased to the height of the breastwork by addition of unarmoured hull structure above the belt. In place of the turret she carried a fixed armoured gun house with four gun ports, it being considered that the turret would not stand up to the shock of ramming. The 305mm gun was mounted on both traversing arcs and a turnable, allowing for positioning and training at each port. 160mm guns were mounted aft behind bulwarks and were unprotected. The principal weapon was the ram, projecting 3m from the bow and supported by a downward extension of the side armour.
She was a good gun platform, very steady and manoeuvrable, but was unable to make headway in heavy seas. Virtually useless in her intended role because of her lack of fire power on forward bearings and lack of speed and seakeeping qualities, she was relegated to the role of coast defence ship.
Ship protection: Waterline belt was 279mm amidships and 203mm at the ends, with a 70 - 51mm deck, the breastwork being of uniform 203mm with a 38mm deck. The gun house had 254mm walls with an 216mm back, the CT being mounted on its roof.
Modernizations: (1881-1883, Lairds): the gun house was replaced by turret with 216mm compound armour (70mm of steel on 146mm iron), breastwork was removed and replaced by a full-width box citadel with 203mm sides and bulkheads, steam steering gear was added, superstructure was rebuilt, ship was re-boilered; - 1 x 1 - 305/12, 2 x 1 - 160/16; + 1 x 2 - 305/12 MLR Mk II, 2 x 1 - 152/26 BL Mk II, 2 - 356 TT, 1 torpedo boat
Naval service: No significant events.
Many thanks to Wolfgang Stöhr for additional information on this page.

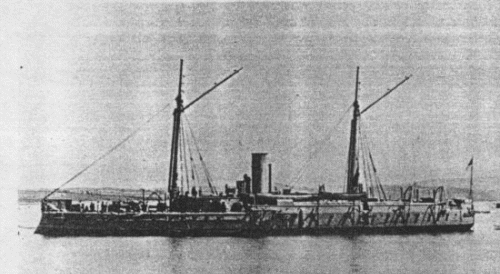

Hotspur as completed

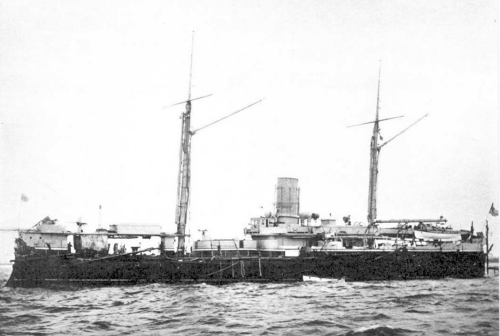

Hotspur as rebuilt
