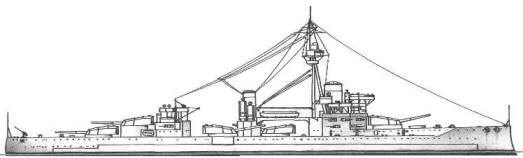

Colossus 1911

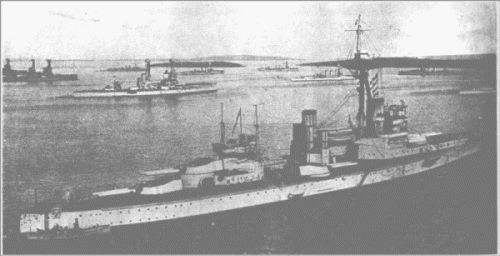

Hercules 1918

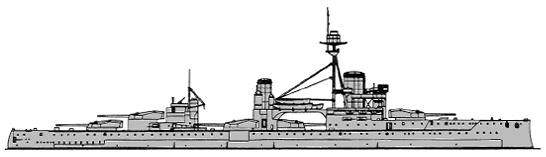

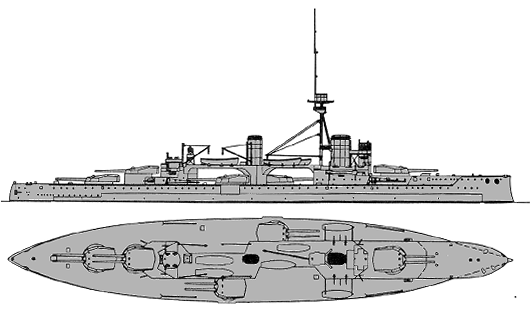

Colossus 1918
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Colossus | 93, 43, 24 | 430 | Scotts, Greenock | 8.7.1909 | 9.4.1910 | 7.1911 | stricken 1920, sold for BU 7.1928 |
| Hercules | 47, 69, 54 | 805 | Palmers, Jarrow | 30.7.1909 | 10.5.1910 | 8.1911 | sold for BU 11.1921 |
|
Displacement normal, t |
20225 |
|
Displacement full, t |
23086 |
|
Length, m |
166.4 |
|
Breadth, m |
25.9 |
|
Draught, m |
8.80 max |
|
No of shafts |
4 |
|
Machinery |
Colossus: 4 Parsons steam turbines, 18 Babcock & Wilcox boilers Hercules: 4 Parsons steam turbines, 18 Yarrow boilers |
|
Power, h. p. |
25000 |
|
Max speed, kts |
21 |
|
Fuel, t |
coal 2900 + oil 800 |
| Endurance, nm(kts) | 6680(10) |
|
Armour, mm |
belt: 279 - 178, bulkheads: 254 - 102, turrets: 279 (face) - 203 (sides and rear) - 102-76 (roof), barbettes: 254 (over main deck) - 102 (under main deck), deck: 102 - 45, CT: 279 (face and sides) - 203 (rear) - 76 (roof) |
|
Armament |
5 x 2 - 305/50 BL Mk XI, 16 x 1 - 102/50 BL Mk VII, 4 x 1 - 47/40 3pdr Hotchkiss Mk I, 3 - 533 TT (2 beam, 1 stern) |
|
Complement |
755 |
Project history: Improved variant of Neptune. The layout of main armament was unchanged, but to save weight the arrangement of siting the tripod mast abaft the fore funnel was reintroduced. The midships 'P' and 'Q' turrets were closer together, permitting a longer forward superstructure and better concentration of secondary guns. 533mm torpedo also replaced the 450mm, necessitating larger torpedo rooms below the waterline. It was vital to keep displacement down to avoid submerging the belt any further, and great efforts were made to improve protection on the gun positions and along the waterline. Unfortunately the designers were asked to do all this on the same length and beam as the Neptune, so the additional 25mm armour on the belt and 51mm on the barbettes could only result in thinner plating elsewhere. This was the last attempt to keep displacement down to an artifical limit, but the increase in size was accompanied by a big jump in gun calibre, which largely used up the additional margin created.
Protection: Main belt has 279mm (tapering to 203mm at the lower edge) thickness between barbettes "A" and "Y", 178mm between barbette "A" and stem (last 10m part from the stem was 64mm), 64mm between barbette "Y" and stern; its height was 2.08m. Upper belt over 279mm main belt was 203mm. Both belts closed by fore 152mm and after 254mm bulkheads. Second fore 102mm bulkhead was at the end of 178mm belt. Main deck was 38mm between barbettes "A" and "Y" and 64mm by other parts, 25mm middle deck with 25mm slopes closed citadel. Lower deck was 102-76mm aft from barbette "Y" and 64-44mm fwd from barbette "A". Outer sides of barbettes "P" and "Q" were 254mm. Funnel uptakes had 38-25mm splinter protection.
Modernizations: 1912, both: raising of the fore funnel.
1912, Hercules: + shields for light guns.
1912, Colossus: + dropping lids for light guns` shields.
1917, both: removing of aft flying deck, - 3 x 1 - 102/50; + 1 x 1 - 102/50 BL Mk VII (AA), 1 x 1 - 76/45 20cwt QF Mk I
Naval service: Colossus became the only Grand Fleet battleship hit at Jutland 31.5.1916 (two heavy shell hits). In 1919-1920 she served as cadets` TS, stricken in 1920 but sold for BU only in July 1928. Hercules was damaged in collision with merchant vessel 22.3.1913.
Many thanks to Wolfgang Stöhr for additional information on this page.
