Names |
L9473 L9673-9692 L9707-9708 |
|
Builders |
Vosper Thornycroft, Southampton: L9473, 9673-9678 FBM Babcock Marine, Rosyth: L9679-9692, 9707, 9708 |
|
Completed |
1996-1999: L9473, 9673-9678 2002-2004: L9679-9692, 9707, 9708 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
in service (2019): L9473, 9673-9692, 9707, 9708 as L0202-02025, L0338-0341, L0344-0347, L0353-0356, L9675, L9676, L9707 |
|
Displacement standard, t |
16 |
|
Displacement full, t |
23 |
|
Length, m |
14.0 pp 15.3 oa |
|
Breadth, m |
4.20 |
|
Draught, m |
0.55 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 Volvo Penta TAMD-72WJ diesels |
|
Power, h. p. |
860 |
|
Max speed, kts |
25 light, 16 loaded |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 210(16) |
|
Armament |
none |
|
Military load |
35 troops, 2 light trucks or 1 tracked vehicle, 2 t of cargo or 8 t of cargo at all |
| Electronic equipment | Raytheon 40 radar |
|
Complement |
3 |
Project history: Landing craft vehicle, personnel. Four were ordered for LPH Ocean, later for Albion class LPDs. Aluminium hull.
Modernizations: None.
Naval service: Craft were renumbered in 2010 as 0202-0205, 0338-0341, 0344-0347, 0353-0356, 9675, 9676 and 9707.

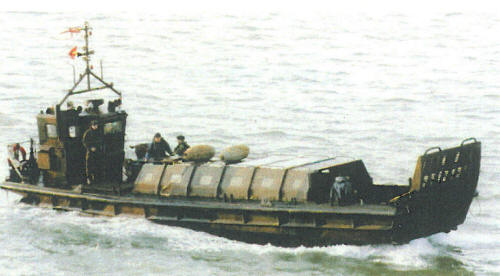

LCVP Mk 5 2002
