Names |
RN: L8301 L8401 L8403-8408 L8410-8418 L8619-8622 Army: L8402 L8409 L8419-8420 |
|
Builders |
Fairey Allday Marine, Hamble: L8301 Souter, Cowes: L8401-8420, 8619-8622 |
|
Completed |
1982: L8301 1985: L8401-8411 1986: L8412-8417 1987: L8418-8420, 8619-8622 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
2006-2009: L8301, 8403-8406, 8408, 8410, 8414-8420 2010-2013: L8401, 8402, 8407, 8409, 8411-8413, 8619-8622 |
|
Displacement standard, t |
11 |
|
Displacement full, t |
16 |
|
Length, m |
11.9 pp 13.0 oa |
|
Breadth, m |
3.20 |
|
Draught, m |
0.80 |
|
No of shafts |
2 |
|
Machinery |
L8301, 8401-8415, 8419, 8420, 8621, 8622: 2 Perkins T6-3544 diesels L8416-8418: 2 Dorman diesels |
|
Power, h. p. |
L8301, 8401-8415, 8419, 8420, 8621, 8622: 440 L8416-8418: |
|
Max speed, kts |
L8301, 8401-8415, 8419, 8420, 8621, 8622: 20 (15 loaded) L8416-8418: 22 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 150(14) |
|
Armament |
2 x 1 - 7.6/90 |
|
Military load |
20 - 35 troops or 5.5 t of cargo |
| Electronic equipment | Raytheon radar |
|
Complement |
3 |
Project history: Landing craft vehicle, personnel.
Modernizations: None.
Naval service: No significant events.

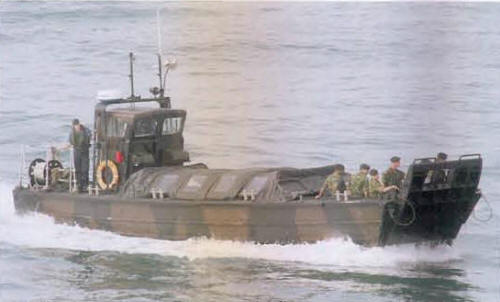

LCVP Mk 4 2008
