| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| LCU01 | L1001, 2005- 9730 | Ailsa Troon SB, Clyde | 1999 | in service (2019) | |||
| LCU02 | L1002, 2005- 9731 | Ailsa Troon SB, Clyde | 1999 | in service (2019) | |||
| LCU03 | L1003, 2005- 9732 | BAE Systems, Govan | 2003 | in service (2019) | |||
| LCU04 | L1004, 2005- 9733 | BAE Systems, Govan | 2003 | in service (2019) | |||
| LCU05 | L1005, 2005- 9734 | BAE Systems, Govan | 2004 | in service (2019) | |||
| LCU06 | L1006, 2005- 9735 | BAE Systems, Govan | 2004 | in service (2019) | |||
| LCU07 | L1007, 2005- 9736 | BAE Systems, Govan | 2004 | in service (2019) | |||
| LCU08 | L1008, 2005- 9737 | BAE Systems, Govan | 2004 | in service (2019) | |||
| LCU09 | L1009, 2005- 9738 | BAE Systems, Govan | 2005 | in service (2019) | |||
| LCU10 | L1010, 2005- 9739 | BAE Systems, Govan | 2005 | in service (2019) |
|
Displacement standard, t |
170 |
|
Displacement full, t |
240 |
|
Length, m |
29.8 |
|
Breadth, m |
7.40 |
|
Draught, m |
1.50 |
|
No of shafts |
2 Schottel waterjets |
|
Machinery |
2 MAN D2840LE diesels |
|
Power, h. p. |
1090 |
|
Max speed, kts |
10 (loaded) 12 (light) |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 600(12) |
|
Armament |
2 x 1 - 7.6/90 |
|
Military load |
1 tank or 2 heavy trucks or 120 troops |
| Electronic equipment | nav. radar |
|
Complement |
7 |
Project history: Ordered for Albion class LPDs. Have 'drive-through' configuration, with ramps fore and aft and pilothouse shifted to starboard.
Modernizations: None.
Naval service: No significant events.

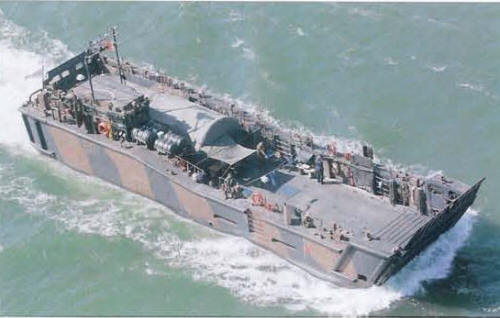

LCU Mk 10 2008
