| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| L700 | Brooke Marine, Lowestoft | 1964 | stricken early 2000s | ||||
| L701 | Brooke Marine, Lowestoft | 1964 | stricken late 2000s | ||||
| L702 | Brooke Marine, Lowestoft | 1965 | stricken early 2000s | ||||
| L703 | Brooke Marine, Lowestoft | 1965 | sunk 5.1982 | ||||
| L704 | R. Dunston, Thorne | 1964 | stricken early 2000s | ||||
| L705 | R. Dunston, Thorne | 1965 | stricken early 2010s | ||||
| L706 | R. Dunston, Thorne | 1965 | stricken early 2000s | ||||
| L707 | R. Dunston, Thorne | 1965 | stricken early 2000s | ||||
| L708 | R. Dunston, Thorne | 1966 | stricken early 2000s | ||||
| L709 | R. Dunston, Thorne | 1966 | stricken early 2010s | ||||
| L710 | J. Bolson, Poole | 1965 | stricken early 2000s | ||||
| L711 | J. Bolson, Poole | 1965 | stricken early 2010s | ||||
| L3507 | Vosper, Portsmouth | 1963 | stricken 1980s | ||||
| L3508 | Vosper, Portsmouth | 1963 | stricken early 2000s |
|
Displacement standard, t |
88 |
|
Displacement full, t |
176 |
|
Length, m |
27.5 |
|
Breadth, m |
6.80 |
|
Draught, m |
1.60 |
|
No of shafts |
2 |
|
Machinery |
2 Paxman diesels |
|
Power, h. p. |
624 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
none |
|
Military load |
1-2 tanks or 100t of vehicles |
| Electronic equipment | radar |
|
Complement |
6 |
Project history: Conventional LCM type craft. Four each of L700 series were carried by Fearless and Intrepid.
Modernizations: None.
Naval service: L703 was sunk during Falklands war.

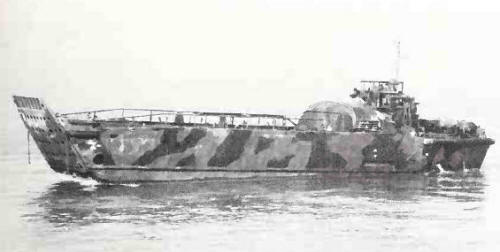

L3507 1978

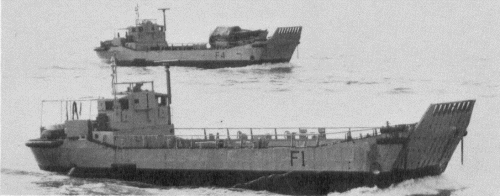

LCU704 1988
© Ivan Gogin, 2015
