LCM501 1942
|
Names |
MLC1 MLC10 - 12, 14 - 19 MLC20 LCM(1)1 - 500 LCM(1)4001 - 4100 LCM(3)501 - 650 LCM(3)901 - 1400 LCM(7)7001 - 7150 |
|
Builders |
UK: MLC, LCM(1), LCM(7) USA: LCM(3) |
|
Completed |
MLC1: 1926 MLC10: 1929 MLC11, 12, 14 - 19: 1937 MLC20: 1940 LCM(1): 1940 - 1944 LCM(3): 1942 - 1944 LCM(7): 1943 - 1944 |
|
Losses |
MLC1 (1941) MLC10 (5/1940), MLC11 (5/1940), MLC12 (2.6.1940), MLC14 (5/1940), MLC15 (5/1940), MLC17 (3.6.1940), MLC18 (5/1940), MLC19 (5/1940) MLC20 (5/1940) 144 LCM(1) and 133 LCM(3) - LCM1 (1941), LCM10 (27.5.1940), LCM11 (27.5.1940), LCM12 (2.6.1940), LCM14 (27.5.1940), LCM15 (27.5.1940), LCM17 (3.6.1940), LCM18 (27.5.1940), LCM19 (27.5.1940), LCM20 (27.5.1940), LCM22 (2.6.1940), LCM23 (8/1942), LCM24 (8/1942), LCM25 (8/1942), LCM26 (2.1.1943), LCM31 (10/1942), LCM32 (8/1941), LCM33 (20.12.1943), LCM34 (8/1942), LCM38 (4/1942), LCM45 (8/1942), LCM46 (5.5.1942), LCM51 (3/1942), LCM53 (3/1942), LCM55 (8/1941), LCM56 (19.8.1942), LCM58 (25.1.1943), LCM61 (8.2.1943), LCM63 (11/1942), LCM64 (11/1942), LCM65 (11/1942), LCM67 (8/1941), LCM69 (11/1942), LCM72 (11/1942), LCM73 (11/1942), LCM76 (3/1944), LCM80 (6.2.1943), LCM82 (8-9/1941), LCM84 (6/1942), LCM89(22.10.1942), LCM90 (6/1942), LCM91 (6/1944), LCM93 (6/1942), LCM95 (8/1941), LCM96 (8/1941), LCM97 (8-9/1941), LCM98 (6.12.1942), LCM100 (11/1942), LCM103 (8/1941), LCM106 (5/1941), LCM107 (8/1941), LCM108 (8/1941), LCM110 (20.6.1942), LCM113 (20.6.1942), LCM119 (6/1942), LCM122 (6/1942), LCM127 (6-7/1944), LCM128 (6-7/1944), LCM131 (5/1944), LCM135 (6/1942), LCM136 (2/1945), LCM137 (6/1942), LCM138 (7.7.1944), LCM139 (20.11.1942), LCM140 (7/1942), LCM145 (20.6.1942), LCM146 (20.6.1942), LCM147 (11/1942), LCM148 (20.6.1942), LCM153 (11/1942), LCM161 (11/1942), LCM165 (6-7/1944), LCM168 (6-7/1944), LCM169 (11/1942), LCM180 (6-7/1944), LCM181 (11/1943), LCM182 (5/1944), LCM183 (5/1944), LCM186 (11/1942), LCM191 (6-7/1944), LCM192 (2/1944), LCM203 (6-7/1944), LCM207 (5/1944), LCM209 (5/1944), LCM212 (5/1944), LCM215 (5/1944), LCM216 (6-7/1944), LCM218 (5/1944), LCM219 (5/1944), LCM226 (6-7/1944), LCM229 (6-7/1944), LCM231 (6-7/1944), LCM232 (10/1943), LCM234 (2/1944), LCM241 (6-7/1944), LCM243 (5/1944), LCM251 (6-7/1944), LCM254 (2/1944), LCM263 (11.9.1944), LCM270 (2/1945), LCM272 (5/1944), LCM277 (5/1944), LCM279 (2/1944), LCM281 (6-7/1944), LCM282 (2/1944), LCM285 (5/1944), LCM288 (5/1944), LCM295 (6/1944), LCM316 (6-7/1944), LCM319 (6-7/1944), LCM324 (5/1944), LCM327 (2/1944), LCM329 (2/1944), LCM330 (6-7/1944), LCM335 (6-7/1944), LCM337 (6-7/1944), LCM338 (6-7/1944), LCM339 (2/1945), LCM340 (19.11.1944), LCM345 (6-7/1944), LCM346 (6-7/1944), LCM348 (6-7/1944), LCM354 (6/1945), LCM355 (6-7/1944), LCM357 (6-7/1944), LCM359 (2/1945), LCM367 (2/1944), LCM377 (6-7/1944), LCM382 (6-7/1944), LCM383 (6-7/1944), LCM408 (6-7/1944), LCM409 (6-7/1944), LCM419 (6-7/1944), LCM421 (6-7/1944), LCM422 (2/1945), LCM424 (19.11.1944), LCM425 (6-7/1944), LCM443 (6-7/1944), LCM444 (6-7/1944), LCM466 (6-7/1944), LCM493 (6/1945) LCM501 (8/1942), LCM508 (10.12.1942), LCM509 (10.12.1942), LCM510 (8/1942), LCM516 (8/1942), LCM518 (11/1942), LCM519 (10.12.1942), LCM520 (11/1942), LCM522 (10.12.1942), LCM523 (10.12.1942), LCM525 (1944), LCM527 (5/1944), LCM528 (11/1942), LCM531 (6-7/1944), LCM532 (10.12.1942), LCM534 (5/1944), LCM535 (6-7/1944), LCM537 (10.12.1942), LCM539 (11/1942), LCM540 (5/1944), LCM543 (11/1942), LCM545 (10/1943), LCM547 (10.12.1942), LCM551 (11/1942), LCM555 (11/1942), LCM556 (11/1942), LCM558 (11/1942), LCM559 (1944), LCM564 (11/1942), LCM567 (11/1942), LCM568 (6-7/1944), LCM569 (11/1942), LCM571 (11/1942), LCM572 (11/1942), LCM574 (11/1942), LCM577 (6/1944), LCM581 (11/1942), LCM583 (11/1943), LCM584 (11/1942), LCM587 (6-7/1944), LCM588 (5/1944), LCM590 (11/1942), LCM591 (1944), LCM592 (11/1942), LCM593 (11/1942), LCM595 (11/1942), LCM596 (11/1942), LCM606 (11/1942), LCM609 (11/1942), LCM611 (14.10.1942), LCM613 (14.10.1942), LCM618 (9.8.1944), LCM620 (10.12.1942), LCM623 (1/1944), LCM624 (11/1942), LCM627 (6-7/1944), LCM628 (6-7/1944), LCM631 (6-7/1944), LCM632 (14.10.1942), LCM633 (14.10.1942), LCM634 (14.10.1942), LCM635 (11/1942), LCM636 (14.10.1942), LCM640 (9.8.1944), LCM641 (6-7/1944), LCM650 (1944), LCM907 (1944), LCM908 (6-7/1944), LCM910 (1/1944), LCM929 (6-7/1944), LCM930 (1/1944), LCM938 (10/1943), LCM1011 (3/1945), LCM1022 (1/1944), LCM1029 (5/1944), LCM1044 (10/1943), LCM1045 (5/1944), LCM1053 (6-7/1944), LCM1059 (6-7/1944), LCM1062 (6-7/1944), LCM1064 (1/1944), LCM1071 (5/1944), LCM1083 (5/1944), LCM1088 (6-7/1944), LCM1092 (6/1945), LCM1098 (6-7/1944), LCM1101 (15.11.1944), LCM1108 (6-7/1944), LCM1115 (6/1944), LCM1120 (6-7/1944), LCM1123 (5/1944), LCM1127 (6-7/1944), LCM1128 (6-7/1944), LCM1130 (6/1944), LCM1131 (23.1.1945), LCM1139 (6-7/1944), LCM1145 (6-7/1944), LCM1146 (6-7/1944), LCM1161 (6-7/1944), LCM1165 (10/1943), LCM1171 (5/1944), LCM1173 (1/1944), LCM1175 (6-7/1944), LCM1182 (10/1943), LCM1185 (7/1945), LCM1189 (6-7/1944), LCM1197 (6-7/1944), LCM1200 (6-7/1944), LCM1204 (1/1944), LCM1205 (5/1944), LCM1207 (6-7/1944), LCM1208 (6-7/1944), LCM1212 (6-7/1944), LCM1220 (6-7/1944), LCM1221 (6-7/1944), LCM1227 (6-7/1944), LCM1232 (6-7/1944), LCM1233 (6-7/1944), LCM1240 (6-7/1944), LCM1244 (6-7/1944), LCM1278 (6-7/1944), LCM1282 (6-7/1944), LCM1293 (6-7/1944), LCM1297 (6-7/1944), LCM1313 (4/1944), LCM1314 (4/1944), LCM1319 (4/1945), LCM1327 (4/1945), LCM1373 (4/1944), LCM1378 (4/1944), LCM1380 (5/1944), LCM1381 (5/1944), LCM1397 (6-7/1944) LCS(L)201 (9/1943) |
|
Transfers |
none |
| Discarding | All LCM(3)s were returned to USA after war. 50 LCM(7) with numbers 7007 - 7216 were in commission in 1953 and only 5 were in service in 1967. 3 units were used as service craft. |
|
Displacement standard, t |
MLC1: 16 MLC10: 20 MLC20, LCM(1): 21 LCM(3): 22 LCM(7): 28 |
|
Displacement full, t |
MLC10: 32 MLC20: 36 LCM(1): 35 LCM(3): 52 LCM(7): 63 |
|
Length, m |
MLC1: 12.2 MLC10: 13.0 MLC20: 13.6 LCM(1): 14.8 LCM(3): 15.2 LCM(7): 18.4 |
|
Breadth, m |
MLC1: 3.50 MLC10: 3.60 MLC20, LCM(1): 4.30 LCM(3): 4.29 LCM(7): 4.90 |
|
Draught, m |
MLC1: 0.38 MLC10: 0.46 MLC20: 1.07 LCM(1): 1.22 LCM(3): 1.37 LCM(7): 1.13 |
|
No of shafts |
2 |
|
Machinery |
MLC1, 20: 2 petrol engines MLC10: 2 Ford petrol engines LCM(1): 2 Thornycroft or Chrysler petrol engines LCM(3): 2 diesels LCM(7): 2 Hudson Invader diesels |
|
Power, h. p. |
MLC10: 68 MLC20: 128 LCM(1): 120 LCM(3): 220 - 450 LCM(7): 290 |
|
Max speed, kts |
MLC1: 4.7 MLC10: 5 MLC20, LCM(1): 7.5 LCM(3): 8.5 - 11 LCM(7): 11 |
|
Fuel, t |
MLC1, 10, 20: petrol LCM(1): petrol 0.3 LCM(3): diesel oil LCM(7): diesel oil 1.7 |
|
Endurance, nm(kts) |
LCM(1): 56(7.5) LCM(3): 140(8.5) LCM(7): 150(7) |
|
Armament |
LCM(1): 2 x 1 - 7.7/94 LCM(3): 1 x 2 - 12.7/62 LCM(7): 1 x 2 - 12.7/62 |
|
Capacity |
MLC1: 100 troops MLC10: 1 12t tank or 100 troops MLC20: 1 14t tank or 100 troops LCM(1): 1 16t tank or 100 troops LCM(3): 1 30t tank or 60 troops LCM(7): 1 35t tank or 100 troops |
|
Complement |
MLC1: 3 MLC10, LCM(3): 3 MLC20: 5 LCM(1), LCM(7): 6 |
Project history: Landing craft Mechanized.
Modernizations: Some LCM(1)s were converted to LCS(L)1-type support craft.
Naval service: No significant events.

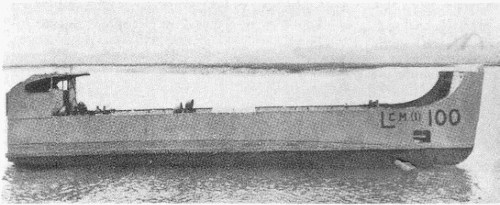

LCM100 1941

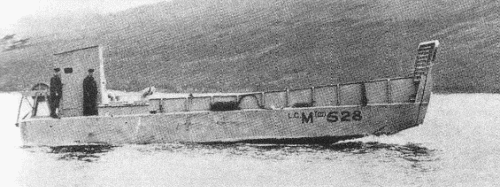

LCM628 1944

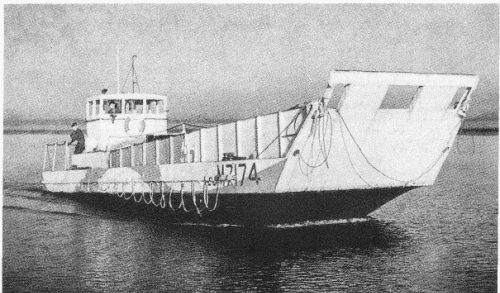

LCM7174
