Al Hasbah 2010
| Name | No | Builder | Laid down | Launched | Comp | Fate |
| الحاسبه [Al Hasbah] (ex-Weiden) | M01 | Abeking & Rasmussen, Lemwerder, Germany | 1.3.1990 | 14.5.1992 | 3.3.1993 // 30.6.2006 | in service (2020) |
| المرجان [Al Murjan] (ex-Frankentahl) | M02 | Lürssen, Vegesack, Germany | 5.12.1989 | 6.3.1992 | 16.12.1992 // 30.6.2006 | in service (2020) |
|
Displacement standard, t |
590 |
|
Displacement full, t |
690 |
|
Length, m |
51.0 pp 54.4 oa |
|
Breadth, m |
9.21 |
|
Draught, m |
2.60 hull 3.30 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V396 TB84 diesels |
|
Power, h. p. |
5550 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
2 x 4 Stinger-Fliegerfaust SAM (8 FIM-92), 1 x 1 - 40/70 Bofors 350, 2 x 1 - 12.7/90, 60 mines, 2x Pinguin B3 USV |
|
Electronic equipment |
SPS-64(v) radar, MSP 500 e/o system, DSQS-11M sonar, DR-2000 ECM suite, 2x Hot Dog/Silver Dog decoy RL, SATAM CCS |
|
Complement |
43 |
Project history: The Type 332 fast minesweepers, improved Type 343 with Pinguin drones instead of sweeps. Transferred after service in the Bundesmarine.
Modernizations: None.
Naval service: No significant events.

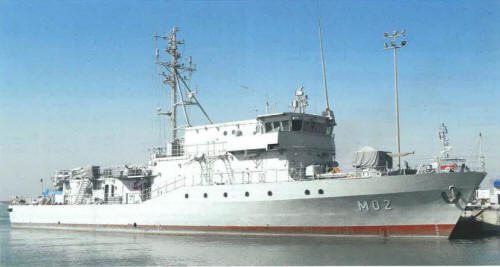

Al Murjan 2010
