Murayjib 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| موريجب [Murayjib] | CM01, 2001- P6501, 2002- P161 | Lürssen, Vegesack, West Germany | 3.1989 | 5/1990 | in service (2020) | ||
| داس [Das] | CM02, 2001- P6502, 2002- P162 | Lürssen, Vegesack, West Germany | 5.1989 | 10/1991 | in service (2020) |
|
Displacement standard, t |
560 |
|
Displacement full, t |
630 |
|
Length, m |
62.9 pp 66.0 oa |
|
Breadth, m |
9.30 |
|
Draught, m |
2.90 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V538 TB92 diesels |
|
Power, h. p. |
15600 |
|
Max speed, kts |
34 |
|
Fuel, t |
diesel oil 120 |
|
Endurance, nm(kts) |
4000(16) |
|
Armament |
2 x 4 MM40 Exocet SSM (8 MM40 Block II), 1 x 8 Crotale modulaire SAM (8 Crotale), 1 x 1 - 76/62 OTO-Melara Compact SR, 1 x 1 - 30/77 Goalkeeper, helicopter deck |
|
Electronic equipment |
Decca TM1226, Sea Giraffe 50HC, 9LV223 Mk 2, Castor IIJ, Goalkeeper radars, Najir e/o system, Cutlass RDL-2, Cygnus ECM suites, 2x Dagaie decoy RL |
|
Complement |
43 |
Project history: Lürssen 'FPB62' type. Specially adapted for conditions of the Gulf, being well armed and air-capable. Ships had helicopter deck able to carry Alouette III helicopter but no hangar.
Modernizations: 2006: - Decca TM1226 radar; + Scout radar
2009, Das; 2010, Murayjib: diesels were replaced by 4 MTU 20V538 TB92 (15600hp, 34kts); - 2 x 4 MM40 Exocet Block II SSM; + 2 x 4 MM40 Exocet SSM (8 MM40 Block III), 2 x 1 - 12.7/90
Naval service: No significant events.

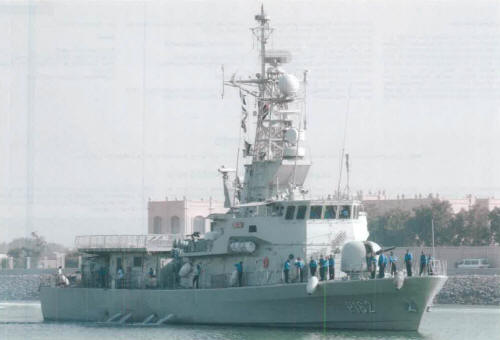

Das 2011
