Abu Dhabi 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| أبو ظبي [Abu Dhabi] | P191 | Fincantieri, Riva Trigoso/Muggiano, Italy | 2009 | 15.2.2011 | 8.1.2013 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
1650 |
|
Length, m |
80.0 pp 88.4 oa |
|
Breadth, m |
12.2 |
|
Draught, m |
3.30 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
19040 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(14) |
|
Armament |
2 x 4 MM40 Exocet SSM (8 MM40 Block III), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 30/82 Marlin, 2 x 1 - 12.7/90, 2 x 2 - 324 TT, 1 helicopter (Panther AS-565) |
|
Electronic equipment |
Kronos 3D, SIR-M, nav. radars, Medusa Mk 4B, NA-30S e/o systems, Kingclip, Captas Nano sonars, 2x MASS decoy RL, WASS torpedo decoy RL, IPN-S CCS |
|
Complement |
71 |
Project history: Modified Italian Comandante Cigala Fulgosi class. Ordered in 2009 with an option for the second unit. Telescopic helicopter hangar. Volumes are reserved for VL MICA SAM launcher.
Modernizations: None.
Naval service: No significant events.

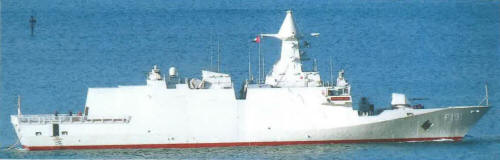

Abu Dhabi 2013
