| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| رماح [Rmah] | A61 | Nobiskrug, Rendsburg, Germany | 2013 | 2014 | in service (2020) | ||
| أفاق [Afaq] | A62 | Nobiskrug, Rendsburg, Germany | 2013 | 2014 | in service (2020) |
|
Displacement standard, t |
1000 |
|
Displacement full, t |
|
|
Length, m |
58.0 |
|
Breadth, m |
11.0 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
|
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
4 - 533 TT (SeaHake Mod.4ER) |
|
Electronic equipment |
2x radars, sonar |
|
Complement |
Project history: Officially rated as supply vessels ships have 4 533mm TTs at transom hidden by covers. Deck aft is used for storage of two standard TEU containers. There is a crane and a ramp aft. Ships use SeaHake Mod.4ER torpedoes, the most long-range torpedoes ever. 140km range is reported (theoretically up to 185km), which allows to attack Iranian submarines in their bases from ultra-long distance.
Modernizations: None.
Naval service: No significant events.

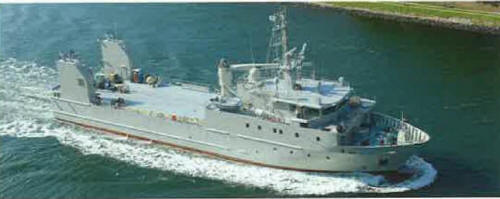

Afaq 2014
