| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| مبارز [Mubarraz] | P4401, 2001- P141 | Lürssen, Vegesack, West Germany | 1989 | 8/1990 | in service (2020) | ||
| مكاسب [Makasib] | P4402, 2001- P142 | Lürssen, Vegesack, West Germany | 1990 | 2/1991 | in service (2020) |
|
Displacement standard, t |
225 |
|
Displacement full, t |
260 |
|
Length, m |
41.5 pp 44.9 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
2.40 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 20V538 TB92 diesels |
|
Power, h. p. |
10200 |
|
Max speed, kts |
33 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1600(16) |
|
Armament |
2 x 2 MM40 Exocet SSM (4 MM40 Block II), 1 x 6 Sadral SAM (6 Mistral), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 Mk 20 Rh202 |
|
Electronic equipment |
Decca TM1226, Sea Giraffe 50HC, 9LV223 radars, Najir e/o system, Cutlass RDL-2, Cygnus ECM suites, Dagaie decoy RL |
|
Complement |
40 |
Project history: Lürssen 'FPB38' design, ordered in 1986 simultaneously with two 'FPB62' corvettes.
Modernizations: 2006, both: - Decca TM1226 radar; + Scout radar
2010, both: - 2 x 2 MM40 Exocet SSM; + 2 x 2 MM40 Exocet SSM (4 MM40 Block III)
Naval service: No significant events.

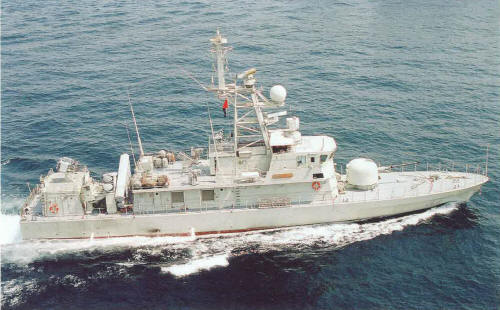

Mubarraz 2000
© Ivan Gogin, 2020
