| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| L6401, 2001- L61 | ADSB, Abu Dhabi | 1996 | in service (2020) | ||||
| الخزنه [Al Khaznah] | L6402, 2001- L62 | ADSB, Abu Dhabi | 1996 | in service (2020) | |||
| L6403, 2001- L63 | ADSB, Abu Dhabi | 1999 | in service (2020) | ||||
| L6404, 2001- L64 | ADSB, Abu Dhabi | 1999 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
850 |
|
Length, m |
55.0 pp 64.0 oa |
|
Breadth, m |
12.0 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3508 diesels |
|
Power, h. p. |
1810 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000 |
|
Armament |
2 x 1 - 20/90 Mk 20 Rh202 |
| Military load | 240 t cargo, 56 troops |
|
Electronic equipment |
Simrad RA-53C radar |
|
Complement |
19 |
Project history: Bow ramp (6.4m length, 60t capacity), 7.5t crane.
Modernizations: None.
Naval service: No significant events.

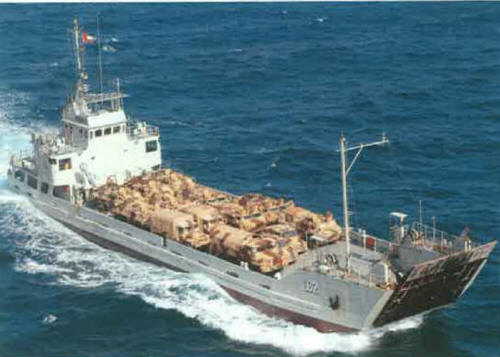

Al Khaznah 2006
