Names |
L21-24 |
|
Builders |
ADSB, Massafah, Abu Dhabi: L21-24 |
|
Completed |
2007: L21-24 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2020): L21-24 |
|
Displacement standard, t |
53 |
|
Displacement full, t |
73 |
|
Length, m |
23.5 pp 26.0 oa |
|
Breadth, m |
5.40 |
|
Draught, m |
1.30 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 12V2000 M90 diesels |
|
Power, h. p. |
2720 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
300 |
|
Armament |
1 x 1 - 12.7/90 |
| Military load | 18 troops, 2 3m conatiners or 1 vehicle |
|
Electronic equipment |
radar |
|
Complement |
3 |
Project history: Fast supply vessels ordered in 2004. Aluminium craft built to a Swede Ship Marine design. Bow door.
Modernizations: None.
Naval service: No significant events.

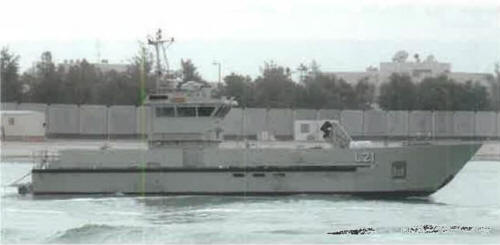

L21 2011
