Names |
P401 ظفير [Dhafeer] P402 غضنفر [Ghadunfar] P403 هذا [Hazza] P404 ضرغام [Durgham] P405 تمساح [Timsah] P406 موريجب [Murayjib] |
|
Builders |
Keith Nelson, Bembridge, UK: P401-406 |
|
Completed |
1968: P401-403 1969: P404, 405 1970: P406 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1991: P401-406 |
|
Displacement standard, t |
10 |
|
Displacement full, t |
|
|
Length, m |
12.5 |
|
Breadth, m |
3.65 |
|
Draught, m |
1.10 |
|
No of shafts |
2 |
|
Machinery |
2 Cummins diesels |
|
Power, h. p. |
370 |
|
Max speed, kts |
19 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
350(15) |
|
Armament |
2 x 1 - 7.6/90 |
|
Electronic equipment |
radar |
|
Complement |
6 |
Project history: Glasse fibre-hulled launches of Abu Dhabi Marine Police, transferred to Marine Poilce of UAE in July 1977.
Modernizations: None.
Naval service: No significant events.

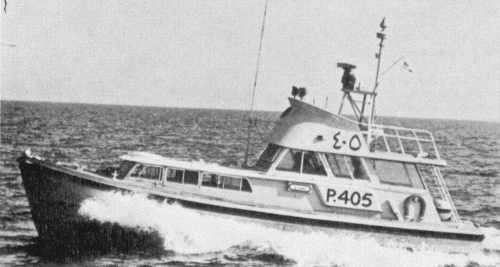

Timsah 1976
