Names |
P301 بطنه [Butinah] P302 البزم [Al Bazam] P303 زابل [Zaabeel] P304 المرم [Al Muroom] P305 الحمرية [Al Hamryah] P306 الخان [Al Khan] P307 الزوراء [Al Zawraa] P308 P309 P310 P311 P312 |
|
Builders |
Swede Ship Marine AB, Tjörn, Sweden: P301-303 ADSB, Massafah, Abu Dhabi: P304-312 |
|
Completed |
2012: P301-303 2013-2015: P304-312 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2020): P301-312 |
|
Displacement standard, t |
30 |
|
Displacement full, t |
48 |
|
Length, m |
26.5 |
|
Breadth, m |
5.10 |
|
Draught, m |
1.10 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 12V2000 M93 diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 4 Marte Mk 2N SSM (4 Marte Mk 2N) or 1 x 1 - 120/15 Nemo mortar, 1 x 1 - 27/63 MLG27, 1 x 1 - 12.7/90 |
| Military load | 42 troops |
|
Electronic equipment |
radar, IPN-S CCS |
|
Complement |
6 |
Project history: Modofied Project Ghannatha craft intended also for service as guided-missile patrol boats, ordered in 2009. Aluminium construction. Can later receive Sea Spear missiles instead of Marte Mk 2N.
Modernizations: None.
Naval service: No significant events.

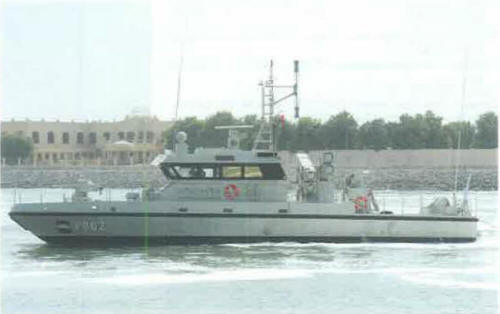

Al Bazam 2013
© Ivan Gogin, 2020
