Baniyas 1985
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| بانياس [Baniyas] | P4501, 2001- P151 | Lürssen, Vegesack, West Germany | 1979 | 11/1980 | in service (2020) | ||
| معربا [Marban] | P4502, 2001- P152 | Lürssen, Vegesack, West Germany | 1979 | 11/1980 | in service (2020) | ||
| ردقم [Rodqum] | P4503, 2001- P153 | Lürssen, Vegesack, West Germany | 12.1980 | 7/1981 | in service (2020) | ||
| شاهين [Shaheen] | P4504, 2001- P154 | Lürssen, Vegesack, West Germany | 12.1980 | 7/1981 | in service (2020) | ||
| صقر [Saqar] | P4505, 2001- P155 | Lürssen, Vegesack, West Germany | 1981 | 9/1981 | in service (2020) | ||
| طريف [Tarif] | P4506, 2001- P156 | Lürssen, Vegesack, West Germany | 1981 | 9/1981 | in service (2020) |
|
Displacement standard, t |
231 |
|
Displacement full, t |
259 |
|
Length, m |
42.3 pp 44.9 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
2.46 propellers |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V538 TB92 diesels |
|
Power, h. p. |
14400 |
|
Max speed, kts |
41.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1670(16) |
|
Armament |
2 x 2 MM40 Exocet SSM (4 MM40), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Decca TM1226, 9LV200 Mk 2 radars, Panda e/o system, Cutlass RDL-2 ECM suite, Dagaie decoy RL |
|
Complement |
32 |
Project history: Lürssen 'TNC45' design, ordered in 1977. First regular warships armed with MM40 missiles.
Modernizations: 1996-2000, all: - Decca TM1226 radar; + Scout radar
2007-2012, all: - 2 x 2 MM40 Exocet SSM, 9LV200 Mk 2 radar, Panda e/o system, Cutlass RDL-2 ECM suite; + 2 x 2 MM40 Exocet SSM (4 MM40 Block III), Sea Giraffe 50HC, 9LV Ceros 200 radars, EOMS (Vigy 105, Vampir-MB) e/o system, DR-3000 ECM suite, 9LV Mk 3E CCS
Naval service: No significant events.

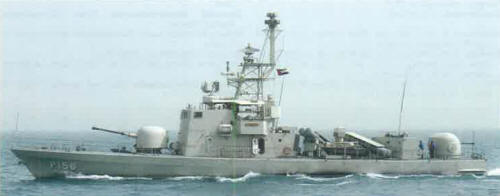

Tarif 2008
