EDERMEN corvettes (2011)
Edermen 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Edermen | 828, later- 121 | 217 | Sredne-Nevskiy SSZ, Pontonnyy, Russia | 3/2009 | 8/2010 | 9/2011 | in service (2020) |
| Gayratly | 829, later- 124 | 218 | Sredne-Nevskiy SSZ, Pontonnyy, Russia | 7/2009 | 5/2011 | 26.9.2011 | in service (2020) |
|
Displacement standard, t |
480 |
|
Displacement full, t |
550 |
|
Length, m |
52.5 pp 59.9 oa |
|
Breadth, m |
11.5 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
CODAG: 2 UGT6000 gas turbines + 2 M-504 diesels |
|
Power, h. p. |
24000+10000=34000 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel / gas turbine oil |
|
Endurance, nm(kts) |
2400(14) |
|
Armament |
4 x 4 Uran SSM (16 3M24EM6), 1 x 4 Igla-1 SAM (12 9K38), 1 x 1 - 76/59 AK-176, 2 x 6 - 30/54 AK-630 |
| Electronic equipment | Kivach-2, Garpun, MR-123 Vympel radars, 4x PK-10 decoy RL |
|
Complement |
39 |
Project history: Fast attack craft of Russian export project 12418. Ordered in 2008.
Modernizations: None.
Naval service: No significant events.

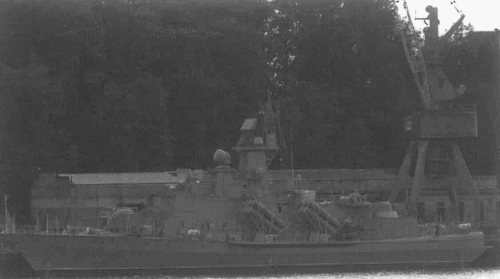

Edermen 2011
