ARKADAG patrol craft (2012-2015)
Arkadag 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Arkadag | 101, later- SG111 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2012 | in service (2020) | |||
| Barkarar | 102, later- SG112 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2012 | in service (2020) | |||
| Merdana | SG113 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2013 | in service (2020) | |||
| Erkana | SG114 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 4/2013 | in service (2020) | |||
| SG115 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2014 | in service (2020) | ||||
| Mergen | SG116 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2014 | in service (2020) | |||
| Kusgar | SG117 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2015 | in service (2020) | |||
| SG118 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2015 | in service (2020) | ||||
| Nayza | SG119 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2015 | in service (2020) | |||
| SG120 | Dearsan, Istanbul, Turkey // Border Guard SY, Turkmenbashi | 2015 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
400 |
|
Length, m |
55.8 |
|
Breadth, m |
8.85 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V4000 M90 diesels |
|
Power, h. p. |
7400 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(12) |
|
Armament |
1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 25/92 STOP, 2 x 6 ASRLS ASWRL, 1 DCT |
|
Electronic equipment |
Scout/Variant 2D radar, ASELFLIR e/o system, SP-92 Mk 2 sonar, Genesis CCS |
|
Complement |
34 |
Project history: Coast Guard. Dearsan P1200 design. Ships were built in sections in Istanbul and assembled and outfitted at Turkmenbashi.
Modernizations: 2016-2018, all: + 2 x 2 SIMBAD-RC SAM (12 Mistral 2)
Naval service: No significant events.

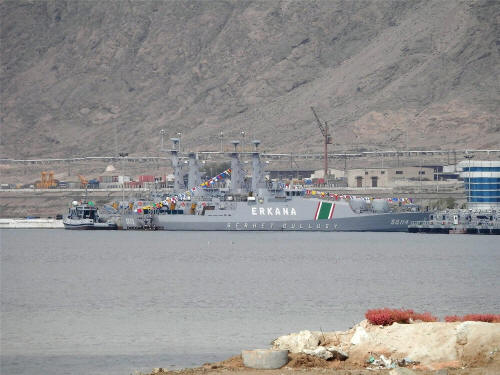

Erkana 2013
