PREVEZE submarines (1994-2008)
Preveze 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Preveze | S353 | Gölçuk NSY, Kocaeli, Izmir | 27.7.1989 | 22.10.1993 | 28.7.1994 | in service (2019) | |
| Sakarya | S354 | Gölçuk NSY, Kocaeli, Izmir | 4.4.1990 | 28.7.1994 | 23.9.1995 | in service (2019) | |
| 18 Mart | S355 | Gölçuk NSY, Kocaeli, Izmir | 28.7.1994 | 25.8.1997 | 24.6.1998 | in service (2019) | |
| Anafartalar | S356 | Gölçuk NSY, Kocaeli, Izmir | 1.8.1995 | 1.9.1998 | 22.7.1999 | in service (2019) | |
| Gür | S357 | Gölçuk NSY, Kocaeli, Izmir | 24.7.1998 | 5.2002 | 24.7.2003 | in service (2019) | |
| Çanakkale | S358 | Gölçuk NSY, Kocaeli, Izmir | 22.7.1999 | 23.6.2004 | 26.7.2005 | in service (2019) | |
| Burakreis | S359 | Gölçuk NSY, Kocaeli, Izmir | 25.7.2001 | 5.9.2005 | 15.2.2006 | in service (2019) | |
| I. Inönü | S360 | Gölçuk NSY, Kocaeli, Izmir | 25.7.2002 | 5.2006 | 22.7.2007 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
1454 / 1586 |
|
Length, m |
62.0 |
|
Breadth, m |
6.25 hull 7.60 stern planes |
|
Draught, m |
5.80 |
|
No of shafts |
1 |
|
Machinery |
4 MTU 12V493 AZ80 diesel-generators, 1 Siemens electric motor |
|
Power, h. p. |
2400 / 5000 |
|
Max speed, kts |
11 / 21 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 8200(8) / 400(4) |
|
Armament |
S353-356: 8 - 533 TT (bow, 14 Mk 24 Mod.2 Tigerfish) S357-360: 8 - 533 TT (bow, 14 DM2A4) |
|
Electronic equipment |
S353-356: nav. radar, CSU-83/1 (KAE) sonar suite, TAS-3 sonar, Porpoise ECM suite, ISUS-83/2 CCS S357-360: nav. radar, CSU-83/1 (KAE) sonar suite, TAS-3 sonar, Sealion ECM suite, ISUS-83/2 CCS |
|
Complement |
30 |
|
Diving depth operational, m |
320 |
Project history: Types 209T1/1400 (first four) and 209T2/1400 (others). Lengthened variant of the standard IKL1400 design.
Modernizations: mid-2010s, all: + ability to launch Sub-Harpoon SSM (up to 4 UGM-84C instead of torpedoes).
Naval service: No significant events.

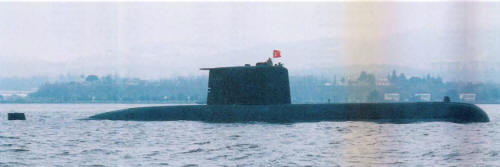

Anafartalar 2001
