ULUÇ ALİ REİS submarines (1944/1972-1973)

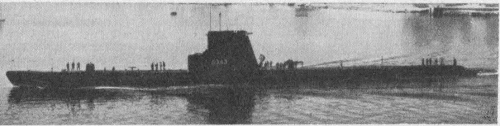

Birinci İnönü 1960

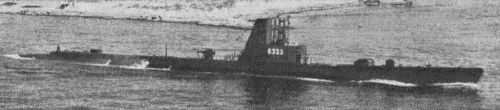

İkinçi İnönü 1960
Gür 1960

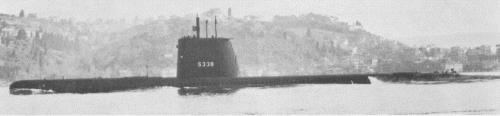

Uluç Ali Reis 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| unmodified Gato | |||||||
| Preveze (ex-Guitarro) | S340 | Manitowoc SB, USA | 4.1943 | 26.9.1943 | 1/1944 // 7.8.1954 | discarded 5.1972 | |
| Cerbe (ex-Hammerhead) | S341 | Manitowoc SB, USA | 5.1943 | 24.10.1943 | 3/1944 // 7.8.1954 | discarded 5.1972 | |
| unmodified Balao | |||||||
| Birinçi İnönü (ex-Brill) | S330 | Electric Boat, Groton, USA | 9.1943 | 25.6.1944 | 10/1944 // 23.5.1948 | discarded 8.1972 | |
| İkinçi İnönü (ex-Blueback) | S331 | Electric Boat, Groton, USA | 7.1943 | 7.5.1944 | 8/1944 // 23.5.1948 | discarded 11.1973 | |
| Sakarya (ex-Boarfish) | S332 | Electric Boat, Groton, USA | 8.1943 | 21.5.1944 | 9/1944 // 23.5.1948 | discarded 12.1975 | |
| Çanakkale (ex-Bumper) | S333 | Electric Boat, Groton, USA | 11.1943 | 6.8.1944 | 12/1944 // 16.11.1950 | discarded 5.1972 | |
| Gür (ex-Chub) | S334 | Electric Boat, Groton, USA | 9.1943 | 18.6.1944 | 10/1944 // 23.5.1948 | discarded 12.1975 | |
| Dumlupınar (ex-Blower) | S335 | Electric Boat, Groton, USA | 7.1943 | 23.4.1944 | 8/1944 // 16.11.1950 | sunk 4.4.1953 | |
| Balao Fleet Snorkel | |||||||
| Turgut Reis (ex-Bergall) | S342 | Electric Boat, Groton, USA | 5.1943 | 12.2.1944 | 6/1944 // 17.10.1958 | discarded 4.1983 | |
| Piri Reis (ex-Mapiro) | S343 | Manitowoc SB, USA | 5.1944 | 9.11.1944 | 4/1945 // 20.4.1960 | discarded 11.1973 | |
| Hızır Reis (ex-Mero) | S344 | Manitowoc SB, USA | 7.1944 | 17.1.1945 | 8/1945 // 20.4.1960 | discarded 10.1980 | |
| Balao GUPPY IA | |||||||
| Dumlupınar (ex-Caiman) | S339 | Electric Boat, Groton, USA | 6.1943 | 30.3.1944 | 7/1944 // 24.8.1972 | stricken 1987 | |
| Balao GUPPY IIA | |||||||
| Burak Reis (ex-Sea Fox) | S335 | Portsmouth N Yd, USA | 11.1943 | 28.3.1944 | 6.1944 // 8.8.1971 | discarded 7.1996 | |
| Murat Reis (ex-Razorback) | S336 | Portsmouth N Yd, USA | 9.1943 | 27.1.1944 | 4.1944 // 17.12.1971 | discarded 8.2001 | |
| Oruç Reis (ex-Pomfret) | S337 | Portsmouth N Yd, USA | 7.1943 | 27.10.1943 | 2/1944 // 3.5.1972 | stricken 1987 | |
| Preveze (ex-Entemedor) | S345 | Electric Boat, Groton, USA | 2.1944 | 17.12.1944 | 4/1945 // 24.10.1972 | stricken 1987 | |
| Birinçi İnönü (ex-Threadfin) | S346 | Portsmouth N Yd, USA | 3.1944 | 26.6.1944 | 8.1944 // 24.8.1972 | stricken 8.1998 | |
| Balao GUPPY III | |||||||
| İkinçi İnönü (ex-Corporal) | S333 | Electric Boat, Groton, USA | 4.1944 | 10.6.1945 | 11.1945 // 12.2.1974 | discarded 10.1996 | |
| Çanakkale (ex-Cobbler) | S341 | Electric Boat, Groton, USA | 4.1944 | 1.4.1945 | 8/1945 // 12.2.1974 | stricken 1.1998 | |
| Tench GUPPY IIA | |||||||
| Uluç Ali Reis (ex-Thornback) | S338 | Portsmouth N Yd, USA | 4.1944 | 7.7.1944 | 10.1944 // 3.5.1972 | stricken 8.2000 | |
| Cerbe (ex-Trutta) | S340 | Portsmouth N Yd, USA | 5.1944 | 18.8.1944 | 11.1944 // 27.5.1973 | stricken 7.1999 | |
| Data variant | Gato unmodified |
|
Displacement standard, t |
|
|
Displacement normal, t |
1810 / 2410 |
|
Length, m |
92.2 wl 95.0 oa |
|
Breadth, m |
8.31 |
|
Draught, m |
4.65 |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesel-generators / 4 electric motors |
|
Power, h. p. |
5400 / 2740 |
|
Max speed, kts |
20.25 / 8.75 |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 96 (2) |
|
Armament |
2 x 1 - 127/25 Mk 40, 2 x 1 - 40/60 Mk 3, 10 - 533 TT (6 bow, 4 stern, 24) |
|
Electronic equipment |
SS, ST, SV radars, WFA, JT sonars, APR-1 ECM suite |
|
Complement |
60 |
|
Diving depth operational, m |
90 |
| Data variant | Balao unmodified |
|
Displacement standard, t |
|
|
Displacement normal, t |
1845 / 2415 |
|
Length, m |
92.2 wl 95.0 oa |
|
Breadth, m |
8.31 |
|
Draught, m |
4.65 |
|
No of shafts |
2 |
|
Machinery |
S332, 333: 4 General Electric diesel-generators / 4 electric motors S336: 4 Fairbanks-Morse diesel-generators / 4 electric motors S330, 331, 334, 335: 4 General Motors diesel-generators / 4 electric motors |
|
Power, h. p. |
5400 / 2740 |
|
Max speed, kts |
20.25 / 8.75 |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 96 (2) |
|
Armament |
2 x 1 - 127/25 Mk 40, 2 x 1 - 40/60 Mk 3, 10 - 533 TT (6 bow, 4 stern, 24) |
|
Electronic equipment |
SS, ST, SV radars, WFA, JT sonars, APR-1 ECM suite |
|
Complement |
60 |
|
Diving depth operational, m |
120 |
| Data variant | Balao Fleet Snorkel |
|
Displacement standard, t |
|
|
Displacement normal, t |
1830 / 2440 |
|
Length, m |
95.0 |
|
Breadth, m |
8.31 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesel-generators / 4 electric motors |
|
Power, h. p. |
4610 / 2700 |
|
Max speed, kts |
20 / 10 (6.5 with snorkel) |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 96 (2) |
|
Armament |
1 x 1 - 127/25 Mk 40 (few), 10 - 533 TT (24 torpedoes or 40 mines, 6 bow, 4 stern) |
|
Electronic equipment |
SS, ST, SV radars, BQR-2, BQS-2, JT or SQR-3 sonars, APR-1 ECM suite |
|
Complement |
82 |
|
Diving depth operational, m |
120 |
| Data variant | Balao GUPPY IA |
|
Displacement standard, t |
|
|
Displacement normal, t |
1830 / 2440 |
|
Length, m |
93.6 |
|
Breadth, m |
8.20 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesel-generators / 4 electric motors |
|
Power, h. p. |
4610 / 5400 |
|
Max speed, kts |
18 / 15 (7.5 with snorkel) |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 96 (2) |
|
Armament |
10 - 533 TT (24 torpedoes or 40 mines, 6 bow, 4 stern) |
|
Electronic equipment |
SS, SV, BPS-1 radars, BQR-2, BQS-2, JT or SQR-3 sonars, APR-1 ECM suite |
|
Complement |
82 |
|
Diving depth operational, m |
120 |
| Data variant | Balao GUPPY IIA |
|
Displacement standard, t |
|
|
Displacement normal, t |
1848 / 2440 |
|
Length, m |
93.6 |
|
Breadth, m |
8.20 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
S345: 3 General Motors diesel-generators / 4 electric motors SS335-337, 346: 3 Fairbanks-Morse diesel-generators / 4 electric motors |
|
Power, h. p. |
3430 / 5400 |
|
Max speed, kts |
17 / 15 |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 96 (2) |
|
Armament |
10 - 533 TT (24 torpedoes or 40 mines, 6 bow, 4 stern) |
|
Electronic equipment |
BPS-1, BPS-4, SS radars, BQR-2, BQS-2, SQR-3 sonars, BLR-1 ECM suite |
|
Complement |
82 |
|
Diving depth operational, m |
120 |
| Data variant | Balao GUPPY III |
|
Displacement standard, t |
|
|
Displacement normal, t |
1975 / 2450 |
|
Length, m |
99.5 |
|
Breadth, m |
8.20 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesel-generators / 4 electric motors |
|
Power, h. p. |
4610 / 5400 |
|
Max speed, kts |
17.2 / 14.5 |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 96 (2) |
|
Armament |
10 - 533 TT (24 torpedoes or 40 mines, 6 bow, 4 stern) |
|
Electronic equipment |
BPS-1, BPS-4, BPS-5 radars, BQR-2, BQS-2, SQR-3, BQG-4 PUFFS (most submarines) sonars, BLR-1 ECM suite |
|
Complement |
86 |
|
Diving depth operational, m |
120 |
| Data variant | Tench GUPPY IIA |
|
Displacement standard, t |
|
|
Displacement normal, t |
1848 / 2440 |
|
Length, m |
93.6 |
|
Breadth, m |
8.20 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
3 Fairbanks-Morse diesel-generators / 4 electric motors |
|
Power, h. p. |
3430 / 5400 |
|
Max speed, kts |
17 / 15 |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 96 (2) |
|
Armament |
10 - 533 TT (24 torpedoes or 40 mines, 6 bow, 4 stern) |
|
Electronic equipment |
BPS-1, BPS-4, SS radars, BQR-2, BQS-2, SQR-3 sonars, APR-1 ECM suite |
|
Complement |
82 |
|
Diving depth operational, m |
120 |
Project history: They were all US Gato, Balao and Tench class submarines. The ones transferred in 1948 were more or less unmodified, but Çanakkale and subsequent boats were semi- or fully streamlined, and most of them were brought up to the fully streamlined 'Fleet Snorkel' standard eventually. Cerbe was unique Turkish GUPPY IIA boat with original stepped sail.
Modernizations: None.
Naval service: Dumlupınar was lost accidently in the Dardanelles on 4 April 1953. Second Dumlupınar was badly damaged in a collision 1.9.1976 and had to be beached. She was eventually repaired and put back into service.
Çanakkale 1960
Piri Reis 1961
Çanakkale 1979
Uluç Ali Reis 1980
© Ivan Gogin, 2015
