ATILAY submarines (1976-1989)

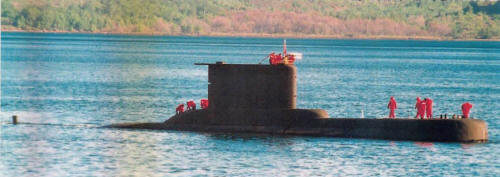

Atılay 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Atılay | S347 | Howaldtswerke, Kiel, West Germany | 2.8.1972 | 23.10.1974 | 12.3.1976 | stricken 11.2016 | |
| Saldıray | S348 | Howaldtswerke, Kiel, West Germany | 2.1.1973 | 14.2.1975 | 15.1.1977 | stricken 11.2014 | |
| Batıray | S349 | Howaldstwerke, Kiel, West Germany | 11.6.1975 | 24.10.1977 | 7.11.1978 | in service (2019) | |
| Yıldıray | S350 | Gölçuk NSY, Kocaeli, Izmir | 1.5.1976 | 20.7.1979 | 20.7.1981 | in service (2019) | |
| Doğanay | S351 | Gölçuk NSY, Kocaeli, Izmir | 21.3.1980 | 16.11.1983 | 16.11.1984 | in service (2019) | |
| Dolunay | S352 | Gölçuk NSY, Kocaeli, Izmir | 16.11.1983 | 22.7.1988 | 29.7.1989 | in service (2019) |
|
Displacement standard, t |
1000 |
|
Displacement normal, t |
1180 / 1285 |
|
Length, m |
56.1 |
|
Breadth, m |
6.20 |
|
Draught, m |
5.50 |
|
No of shafts |
1 |
|
Machinery |
4 MTU 12V493 AZ80 diesel-generators, 1 Siemens electric motor |
|
Power, h. p. |
2400 / 5000 |
|
Max speed, kts |
11 / 22 |
|
Fuel, t |
diesel oil 185 |
| Endurance, nm(kts) | 7800(8) / 400(4) |
|
Armament |
8 - 533 TT (bow, 14 SUT, SST-4, Mk 37 Mod.2) |
|
Electronic equipment |
S347, 348: Calypso-II radar, CSU-3 sonar suite (AN526, AN402AS, DUUX-2 sonars), DR-2000 ECM suite, M8 CCS S349-352: Calypso-II radar, CSU-3 sonar suite (AN526, AN402AS, DUUX-2 sonars), Porpoise ECM suite, SINBADS CCS |
|
Complement |
38 |
|
Diving depth operational, m |
250 |
Project history: Type 209/1200. Similar to the Type 209 German-designed submarines serving in the Greek and several South American navies. A single hull, medium-sized design capable of diving to 250m. A total of twelve was orginally planned, with the first three built in Germany and later units in Turkey with German technical assistance.
Modernizations: 1999-2000, Atılay, Saldıray: - DR-2000 ECM suite; + Sealion ECM suite
2012-2016, Doğanay, Dolunay: + Ares-2N ECM suite, ability to launch Mk 48 Mod.6AT ADCAP torpedoes
Naval service: No significant events.
Yıldıray 2002
