Karamürsel 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Karamürsel (ex-Wörms) | M520, 2006- P307 | CMN, Cherbourg, France | 19.3.1958 | 30.1.1960 | 30.4.1960 // 6-10/1975 | patrol 2006, stricken 2013-14 | |
| Kerempe (ex-Detmold) | M521, 2006- P308 | CMN, Cherbourg, France | 19.2.1958 | 17.11.1959 | 20.2.1960 // 6-10/1975 | patrol 2006, stricken 2013-14 | |
| Kilimli (ex-Siegen) | M522, 2006- P309 | CMN, Cherbourg, France | 18.4.1958 | 29.3.1960 | 9.7.1960 // 6-10/1975 | patrol 2006, stricken 2013-14 | |
| Kozlu (ex-Hameln) | M523, 1999- P301 | CMN, Cherbourg, France | 20.1.1958 | 20.8.1959 | 4.12.1959 // 6-10/1975 | patrol 1999, stricken 2013-14 | |
| Kuşadası (ex-Vegesack) | M524, 1999- P302 | CMN, Cherbourg, France | 20.12.1957 | 21.5.1959 | 10.9.1959 // 6-10/1975 | patrol 1999, stricken 2013-14 | |
| Kemer (ex-Passau) | M525 | CMN, Cherbourg, France | 19.5.1958 | 25.6.1960 | 15.10.1960 // 1979 | salvage tender 1998 |
|
Displacement standard, t |
366 |
|
Displacement full, t |
383 |
|
Length, m |
42.5 pp 44.6 oa |
|
Breadth, m |
8.41 |
|
Draught, m |
2.55 |
|
No of shafts |
2 |
|
Machinery |
2 Mercedes-Benz MB820Db diesels |
|
Power, h. p. |
1320 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
diesel oil 35 |
| Endurance, nm(kts) | 5000(12) |
|
Armament |
1 x 2 - 20/70 Mk 24, mechanical, acoustic and magnetic minesweeping gear |
|
Electronic equipment |
Decca 707 radar, Simrad sonar |
|
Complement |
40 |
Project history: Former Vegesack group minesweepers of Mercure class, built in France for Bundesmarine.
Modernizations: 1999, Kozlu, Kuşadası; 2006, Karamürsel, Kerempe, Kilimli: - minesweeping gear
Naval service: No significant events.

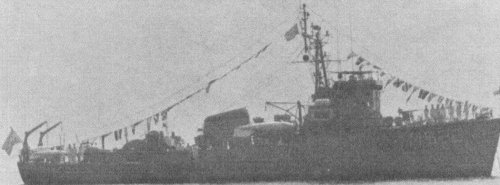

Kilimli 1979
© Ivan Gogin, 2018
