Edincik 2010
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| Edincik (ex-Calliope) | M260 | CMN, Cherbourg, France | 4.4.1970 | 20.10.1971 | 28.9.1972 // 17.7.1998 | in service (2019) | |
| Edremit (ex-Circé) | M261 | CMN, Cherbourg, France | 30.1.1969 | 15.12.1970 | 18.5.1972 // 28.8.1998 | in service (2019) | |
| Enez (ex-Cérès) | M262 | CMN, Cherbourg, France | 2.2.1971 | 10.8.1972 | 8.3.1973 // 30.10.1998 | in service (2019) | |
| Erdek (ex-Cybèle) | M263 | CMN, Cherbourg, France | 15.9.1970 | 2.3.1972 | 28.9.1972 // 4.12.1998 | in service (2019) | |
| Erdemli (ex-Clio) | M264 | CMN, Cherbourg, France | 4.9.1969 | 10.6.1971 | 18.5.1972 // 15.1.1999 | in service (2019) |
|
Displacement standard, t |
423 |
|
Displacement full, t |
508 |
|
Length, m |
46.5 pp 50.9 oa |
|
Breadth, m |
9.30 |
|
Draught, m |
3.60 max |
|
No of shafts |
1 |
|
Machinery |
1 MTU diesel / 2 electric propulsors |
|
Power, h. p. |
1800 / 520 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(12) |
|
Armament |
1 x 1 - 20/90 MIT-20F2, 2 PAP-Plus USV, 6 mineclearing divers |
|
Electronic equipment |
DRBN-34A radar, DUBM-20B sonar, Minetac CCS |
|
Complement |
50 |
Project history: Former French Circé class minesweepers. Modernised before transfer with new minehunting drones and data system.
Modernizations: None.
Naval service: No significant events.

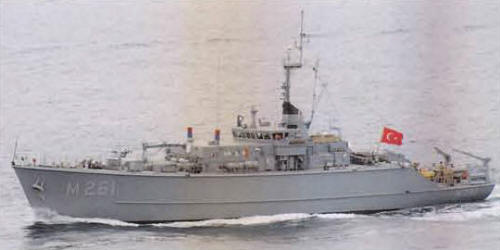

Edremit 2007
