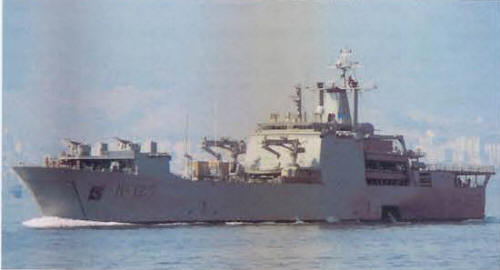

Osman Gazi 1995
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Osman Gazi | NL125 | Taşkizak NSY, Istanbul | 5.7.1989 | 20.7.1990 | 27.7.1994 | in service (2019) | |
| Orhan Gazi | NL126 | Taşkizak NSY, Istanbul | 1990 | --- | --- | cancelled 7.1991 |
|
Displacement standard, t |
|
|
Displacement full, t |
3773 |
|
Length, m |
95.5 wl 105.0 oa |
|
Breadth, m |
16.1 |
|
Draught, m |
4.80 max |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V1163 TB73 diesels |
|
Power, h. p. |
8800 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4000(15) |
|
Armament |
2 x 2 - 40/70 Bofors 106, 1 x 2 - 35/90 GDM-A, 200 mines, helicopter deck |
| Military load | 4 LCVP, 900 troops, 15 tanks |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
Project history: Enlarged version of the Sarucabey with 50% more capacity. Has amphibious warfare command facilities and full NBC protection. Has two mineports in the stern, minerails are on the tank deck.
Modernizations: 2011: - 2 x 2 - 40/70, Decca 1226 radar; + 1 x 2 - 35/90 GDM-A, 1 x 6 - 20/76 Phalanx Mk 15, 2 x 1 - 20/70 Mk 10, Rascar 2500C, SPS-55, Mk 90 radars, SLQ-32(v)2 ECM suite, 2x SRBOC Mk 36 decoy RL
Naval service: No significant events.
Osman Gazi 2007
