LCVP 1975
|
Names |
34 units |
|
Builders |
USA: 34 units |
|
Commissioned |
1940s // 1972: 8 units 1950s // 1973: 4 units 1950s // 1974: 4 units 1970s // 1980: 2 units 1970s // 1984: 2 units 1970s // 1987: 2 units 1970s // 1994: 4 units 2017: 4 units (new design) 2018: 4 units (new design) |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1999: 2 units 2004: 8 units 2013: 4 units 2018: 4 units in service (2019): 16 units |
|
Displacement standard, t |
9 |
|
Displacement full, t |
13 |
|
Length, m |
11.2 |
|
Breadth, m |
3.20 |
|
Draught, m |
0.92 |
|
No of shafts |
2 |
|
Machinery |
1 Gray Marine 64HN9 diesel |
|
Power, h. p. |
225 |
|
Max speed, kts |
9 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
110(9) |
|
Armament |
2 x 1 - 12.7/90 |
| Military load | 36 troops or 1 light tank or 3.7 t of cargo |
|
Complement |
3 |
Project history: USN LCVP craft, transferred on board of four LSTs and later transferred to equip new LSTs. 8 units were built for LSTs of Bayraktar class.
Modernizations: None.
Naval service: No significant events.

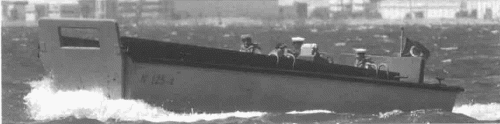

LCVP from Osman Gazi 2011
? Ivan Gogin, 2018-19
