Ç107 small landing ships (1966-1984)

Ç107 1970

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
	Ç107		Gölçuk SY, Kocaeli			1966-1973	stricken 1992
	Ç108		Gölçuk SY, Kocaeli			1966-1973	stricken 2000
	Ç109		Gölçuk SY, Kocaeli			1966-1973	stricken 1985
	Ç110		Gölçuk SY, Kocaeli			1966-1973	stricken 1998
	Ç111		Gölçuk SY, Kocaeli			1966-1973	stricken 1981
	Ç112		Gölçuk SY, Kocaeli			1966-1973	stricken 1981
	Ç113		Gölçuk SY, Kocaeli			1966-1973	stricken 1992
	Ç114		Gölçuk SY, Kocaeli			1966-1973	stricken 2000
	Ç115		Gölçuk SY, Kocaeli			1966-1973	stricken 1981
	Ç116		Gölçuk SY, Kocaeli			1966-1973	stricken 1981
	Ç117		Gölçuk SY, Kocaeli			1966-1973	stricken 2004
	Ç118		Gölçuk SY, Kocaeli			1966-1973	stricken 2000
	Ç119		Gölçuk SY, Kocaeli			1966-1973	stricken 2000
	Ç120		Gölçuk SY, Kocaeli			1966-1973	stricken 2012
	Ç121		Gölçuk SY, Kocaeli			1966-1973	stricken 2000
	Ç122		Gölçuk SY, Kocaeli			1966-1973	stricken 2000
	Ç123		Gölçuk SY, Kocaeli			1966-1973	stricken 2013-14
	Ç124		Gölçuk SY, Kocaeli			1966-1973	stricken 2004
	Ç125		Gölçuk SY, Kocaeli			1966-1973	stricken 2013-14
	Ç126		Gölçuk SY, Kocaeli			1966-1973	stricken 2013-14
	Ç127		Gölçuk SY, Kocaeli			1966-1973	stricken 2013-14
	Ç128		Gölçuk SY, Kocaeli			1966-1973	stricken 2013-14
	Ç129		Gölçuk SY, Kocaeli			1966-1973	stricken 2006
	Ç130		Gölçuk SY, Kocaeli			1978	stricken 1983, to Lybia 12.1979 (القبيات [Al Qoubaiyat])
	Ç131		Gölçuk SY, Kocaeli			1978	stricken 1983, to Lybia 12.1979 (رئس الحلل [Rais El Hilel])
	Ç132		Gölçuk SY, Kocaeli			1980	in service (2019)
	Ç133		Gölçuk SY, Kocaeli			1980	stricken 2013-14
	Ç134		Gölçuk SY, Kocaeli			1980	stricken 2013-14
	Ç135		Gölçuk SY, Kocaeli			1980	stricken 2013-14
	Ç136		Gölçuk SY, Kocaeli		21.3.1980	20.7.1981	foundered 30.1.1985
	Ç137		Gölçuk SY, Kocaeli		21.3.1980	20.7.1981	stricken 2013-14
	Ç138		Taşkizak NSY, Istanbul		1984	1984	in service (2019)

Displacement standard, t
260

Displacement full, t
580

Length, m

56.6

Breadth, m
11.6

Draught, m

1.25 aft

No of shafts

3

Machinery

3 General Motors Detroit 6-71 diesels

Power, h. p.

900

Max speed, kts

10

Fuel, t

diesel oil

Endurance, nm(kts) 1100(8)

Armament

2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90

Electronic equipment Decca TM1226 radar

Military load
5 medium tanks, 100 troops

Complement
17

Project history: Development of UK LCT(4) design.

Modernizations: None.

Naval service: Ç136 was lost in storm 31.1.1985.

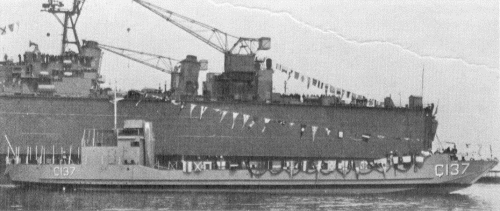

Ç137 1980

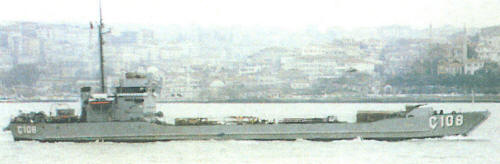

Ç108 1996

Displacement standard, t	260
Displacement full, t	580
Length, m	56.6
Breadth, m	11.6
Draught, m	1.25 aft
No of shafts	3
Machinery	3 General Motors Detroit 6-71 diesels
Power, h. p.	900
Max speed, kts	10
Fuel, t	diesel oil
Endurance, nm(kts)	1100(8)
Armament	2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90
Electronic equipment	Decca TM1226 radar
Military load	5 medium tanks, 100 troops
Complement	17

TURKISH NAVY (TURKEY)

Ç107 small landing ships (1966-1984)
