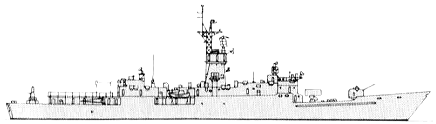

Muavenet 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Muavenet (ex-Capodanno) | F250 | Avondale, Westwego, USA | 25.2.1972 | 21.10.1972 | 17.11.1973 // 30.7.1993 | stricken 2007 | |
| Adatepe (ex-Fanning) | F251 | Todd, San Pedro, USA | 7.12.1968 | 24.1.1970 | 23.7.1971 // 28.8.1993 | stricken 11.2000 | |
| Kocatepe (ex-Reasoner) | F252 | Lockheed, Seattle, USA | 6.1.1969 | 1.8.1970 | 31.7.1971 // 28.8.1993 | stricken 2002 | |
| Zafer (ex-Thomas C. Hart) | F253 | Avondale, Westwego, USA | 8.10.1971 | 12.8.1972 | 28.7.1973 // 30.8.1993 | stricken 2013 | |
| Trakya (ex-McCandless) | F254 | Avondale, Westwego, USA | 4.6.1970 | 20.3.1971 | 18.3.1972 // 5.6.1994 | stricken 2003 | |
| Karadeniz (ex-Donald B. Beary) | F255 | Avondale, Westwego, USA | 24.7.1970 | 22.5.1971 | 22.7.1972 // 20.5.1994 | stricken 2006 | |
| Ege (ex-Ainsworth) | F256 | Avondale, Westwego, USA | 11.6.1971 | 15.4.1972 | 31.3.1973 // 27.5.1994 | stricken 2005 | |
| Akdeniz (ex-Bowen) | F257 | Avondale, Westwego, USA | 11.7.1969 | 2.5.1970 | 22.5.1971 // 3.6.1994 | stricken 2001 |
|
Displacement standard, t |
3130 |
|
Displacement full, t |
4260 |
|
Length, m |
126.5 wl 134.0 oa |
|
Breadth, m |
14.3 |
|
Draught, m |
4.77 hull 7.83 over sonar |
|
No of shafts |
1 |
|
Machinery |
F250, 251, 253-257: 1 set Westinghouse geared steam turbines, 2 Combustion Engineering boilers F252: 1 set Westinghouse geared steam turbines , 2 Babcock & Wilcox boilers |
|
Power, h. p. |
35000 |
|
Max speed, kts |
27 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 4500(20) |
|
Armament |
1 x 8 Harpoon SSM / ASROC Mk 116 ASuR (4 RGM-84A, 12 RUR-5), 1 x 1 - 127/54 Mk 42, 1 x 6 - 20/76 Mk 15 Phalanx, 4 - 324 Mk 32 TT (24), 1 helicopter (AB-212) |
|
Electronic equipment |
LN-66, SPS-10F, SPS-40D, SPG-53D/F, Mk 90 radars, SQS-26CX sonar, SLQ-32(v)2 ECM suite, 2x Mk 36 SRBOC decoy RL, T-Mk 6 Farfare torpedo decoy |
|
Complement |
224 |
Project history: Former USN Knox class frigates.
Modernizations: late 1990s, all: - LN-66 radar; + Decca TM1226 radar
Naval service: None.

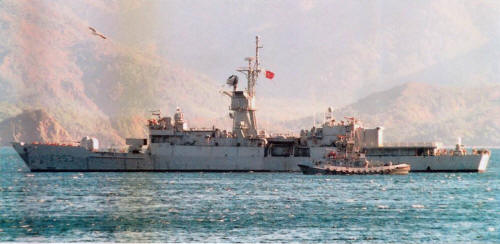

Zafer 2002
