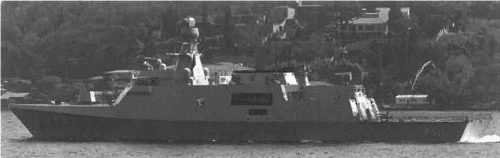

Heybeliada 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Heybeliada | F511 | Istanbul NSY | 22.1.2007 | 27.9.2008 | 27.9.2011 | in service (2019) | |
| Büyükada | F512 | Istanbul NSY | 28.9.2008 | 27.9.2011 | 27.9.2013 | in service (2019) | |
| Burgazada | F513 | Istanbul NSY | 27.9.2013 | 1.7.2016 | 4.11.2018 | in service (2019) | |
| Kınalıada | F514 | Istanbul NSY | 18.6.2016 | 3.7.2017 | 2019 | building (2019) |
|
Displacement standard, t |
1500 |
|
Displacement full, t |
2000 |
|
Length, m |
90.5 pp 99.0 oa |
|
Breadth, m |
14.4 |
|
Draught, m |
3.75 |
|
No of shafts |
2 |
|
Machinery |
CODAG: 1 General Electric LM-2500 gas turbine + 2 MTU 16V595 TE90 diesels |
|
Power, h. p. |
31280+11750=43030 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3500(15) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84L), 1 x 21 RAM SAM (21 RIM-116 Block 1A), 1 x 1 - 76/62 OTO Melara Compact, 2 x 1 - 12.7/90, 2 x 2 - 324 Mk 32 Mod.9 TT (Mk 54), 1 helicopter (S-70B-2) |
|
Electronic equipment |
SMART-S Mk 2, Scout Mk 2, Sting EO Mk 2, 2x Sperry Vision Master radars, AselFLIR 300D e/o system, sonar, Ares-2N ES ECM suite, 2x type 2170 Sea Sentor SSTD torpedo decoy launchers, Genesis CCS |
|
Complement |
93 |
Project history: The MILGEM national corvette program is the first modern warship class to be produced and designed domestically in Turkey. Up to ten units eventually may be built for the Turkish navy. The 12.7mm guns in auto-stabilized Aselsan STAMP mounts are guided via an electro-optic sensor; they can be fired manually or automatically. Twin ASW torpedo tubes appear to have been taken from the retired Knox-class units. The class can achieve 15kts cruising speed on one diesel, 27kts on gas turbine and 30kts at full power with two diesels and the gas turbine. A high level of automation allows for reduced crew size.
Modernizations: None.
Naval service: No significant events.
Heybeliada 2012
